Multiparameter Water Quality Analysis Sonde
Easily gather data throughout different water levels and evaluate water quality parameters as you pilot your ROV. With multiple sensor options available, you can connect up to 4 of the below sensors simultaneously. Swap between the sensors in the field quickly and easily.
Error adding item to quote
Added to quote
Plug and play on ROV
Real-time monitoring
Integrate up to 4 sensors
Record environmental data

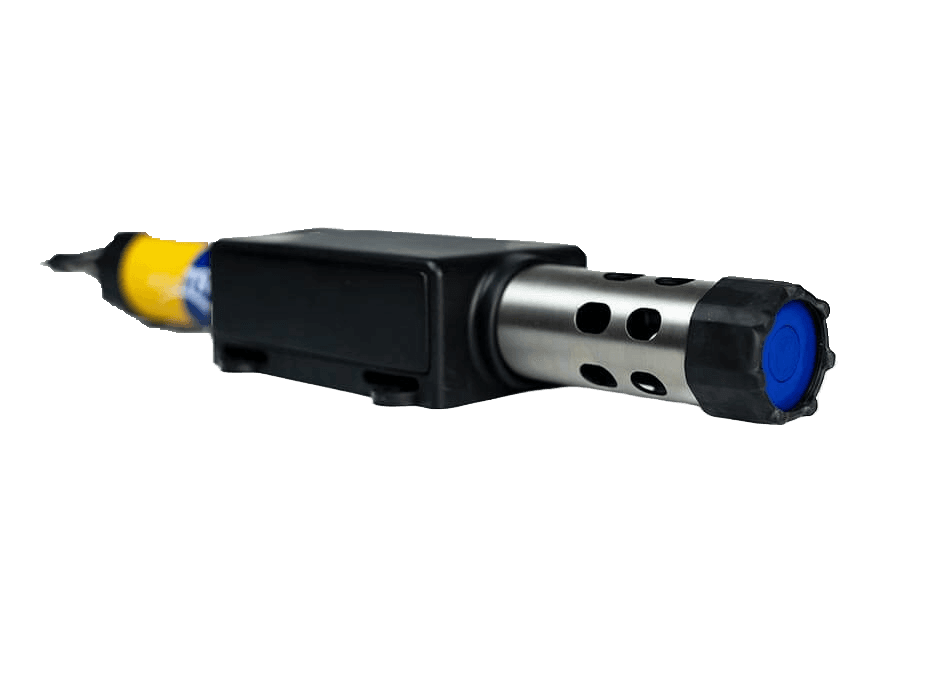

Add up to 4 sensors to the Multiparameter sonde

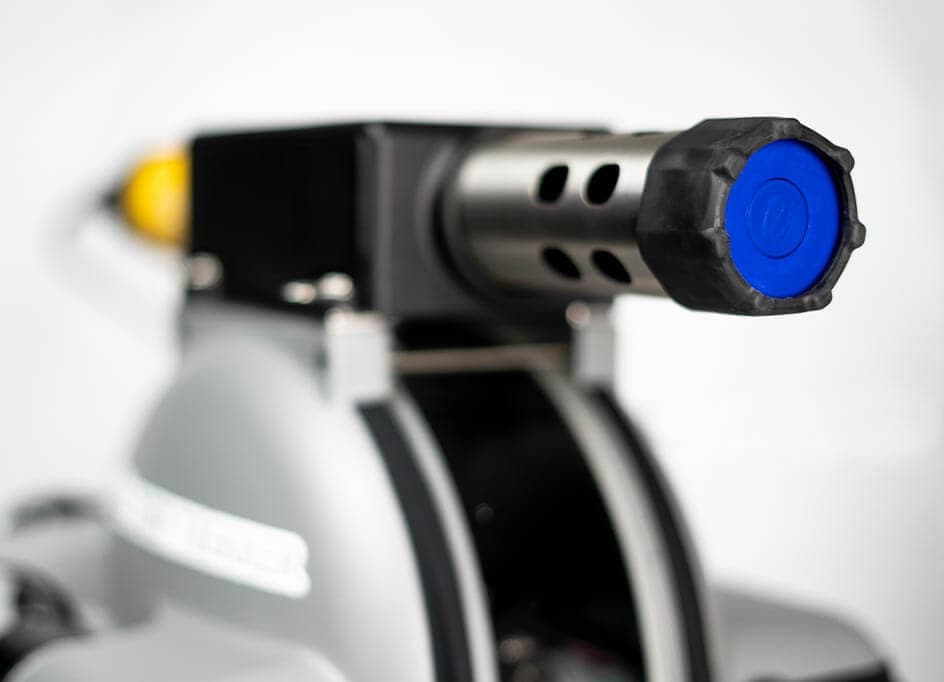

The probe is a device the mounts on either the top or bottom of the DTG3, or the bottom of the REVOLUTION. The probe can support up to 4 parameters at a given time and the parameters can be swapped in the field. These parameter sensors are sold separately, the options are:
- Temperature/Conductivity
- pH/ORP
- RDO
- Turbidity
- Chlorophyll A
- Ammonium
- Nitrate
- Chloride
- Phycocyanin (BGA-PC)
- Phycerythrin (BGA-PE)
- Rhodamine WT.
Aqua TROLL 500 Multiparameter Sonde Specs
| WEIGHT | 0.978 kg / 2.15 lbs (includes instrument, sensors, restrictor and bumpers) |
|---|---|
| DIMENSIONS | Length 46 cm (18.145”) With bail 59 cm (23.25”) Diameter 4.7 cm (1.860”) |
| OUTPUT OPTIONS | RS-485/MODBUS, SDI-12, Bluetooth |
| MAX PRESSURE RATING | Up to 150 PSI Ammonium/Nitrate up to 30PSI |
| ENVIRONMENTAL RATING | IP68 with all sensors and cable attached, IP67 without the sensors or cable attached |
| SENSOR HEX SCREW DRIVER | 0.050, 1.3 mm |
| OPERATING TEMP. (NON-FREEZING) | 5 to 50°C (23 to 122°F) ISE: Ammonium and Nitrate 0 - 40°C, Chloride 0 - 50°C |
| INTERNAL MEMORY AND DATA LOGGING | Use external datalogger or telemetry |
| WETTED MATERIALS (SONDE AND SENSORS) | PC, PC alloy, Delrin, Santoprene, Inconel, Viton, Titanium, Platinum, Ceramic, Nylon, PVC, Graphite |
Add up to 4 sensors to the Multiparameter sonde
The probe is a device the mounts on either the top or bottom of the DTG3, or the bottom of the REVOLUTION. The probe can support up to 4 parameters at a given time and the parameters can be swapped in the field. These parameter sensors are sold separately, the options are:
- Temperature/Conductivity
- pH/ORP
- RDO
- Turbidity
- Chlorophyll A
- Ammonium
- Nitrate
- Chloride
- Phycocyanin (BGA-PC)
- Phycerythrin (BGA-PE)
- Rhodamine WT.
Aqua TROLL 500 Multiparameter Sonde Specs
| WEIGHT | 0.978 kg / 2.15 lbs (includes instrument, sensors, restrictor and bumpers) |
|---|---|
| DIMENSIONS | Length 46 cm (18.145”) With bail 59 cm (23.25”) Diameter 4.7 cm (1.860”) |
| OUTPUT OPTIONS | RS-485/MODBUS, SDI-12, Bluetooth |
| MAX PRESSURE RATING | Up to 150 PSI Ammonium/Nitrate up to 30PSI |
| ENVIRONMENTAL RATING | IP68 with all sensors and cable attached, IP67 without the sensors or cable attached |
| SENSOR HEX SCREW DRIVER | 0.050, 1.3 mm |
| OPERATING TEMP. (NON-FREEZING) | 5 to 50°C (23 to 122°F) ISE: Ammonium and Nitrate 0 - 40°C, Chloride 0 - 50°C |
| INTERNAL MEMORY AND DATA LOGGING | Use external datalogger or telemetry |
| WETTED MATERIALS (SONDE AND SENSORS) | PC, PC alloy, Delrin, Santoprene, Inconel, Viton, Titanium, Platinum, Ceramic, Nylon, PVC, Graphite |
