At a Glance
Depth rating up to 305 meters (1,000 feet)
8 hour Battery - including quick swap
Wheeled Pelican case
Comprehensive sensor integrations
4k camera quality
260 degree camera rotation
Sonar and positioning ready
Join the REVOLUTION
The Deep Trekker REVOLUTION is a completely re-imagined ROV. The patented pending revolving head allows operators to rotate the camera, manipulators, and sonar all while station holding in moving water.

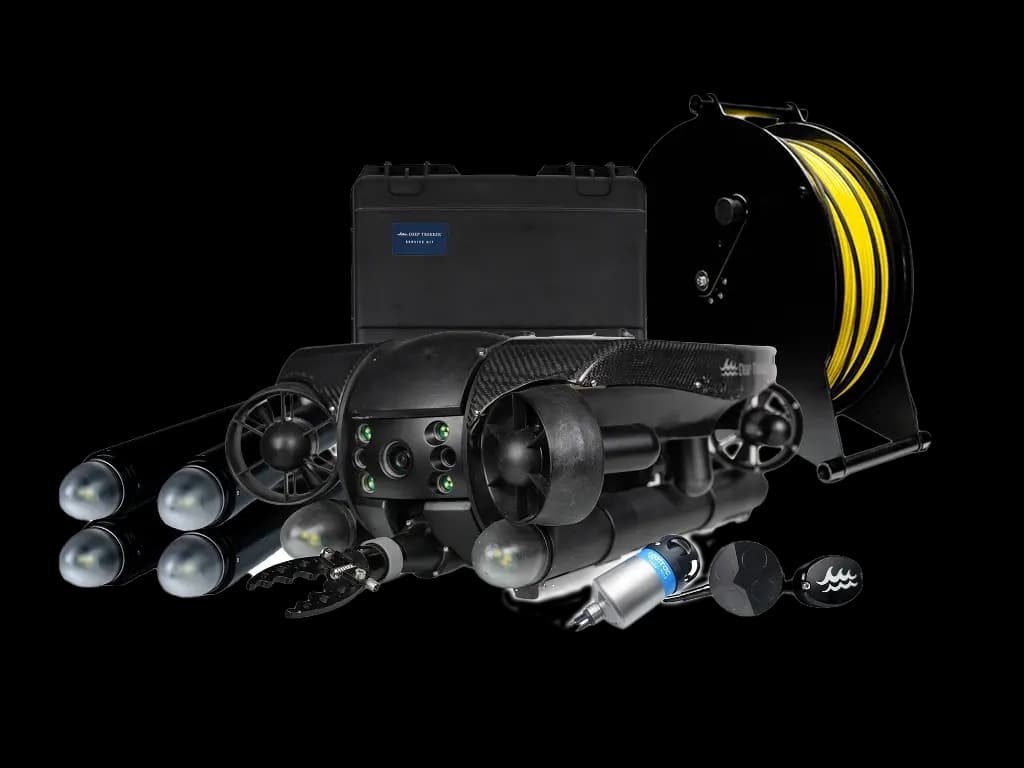

Deep Trekker Revolution Package
REVOLUTION ROV | NAV Package
Want to track your underwater missions, where you have been and where you are going? The REVOLUTION NAV package gives you the ability to monitor your ROV’s trail as it moves through the water on a Google Map, while also allowing you to set waypoints and track data over time. It also gives you autonomous capabilities such as station holding in current, altitude holding and will eventually pave the way to a hybrid autonomous vehicle with waypoint navigation capabilities.Learn More

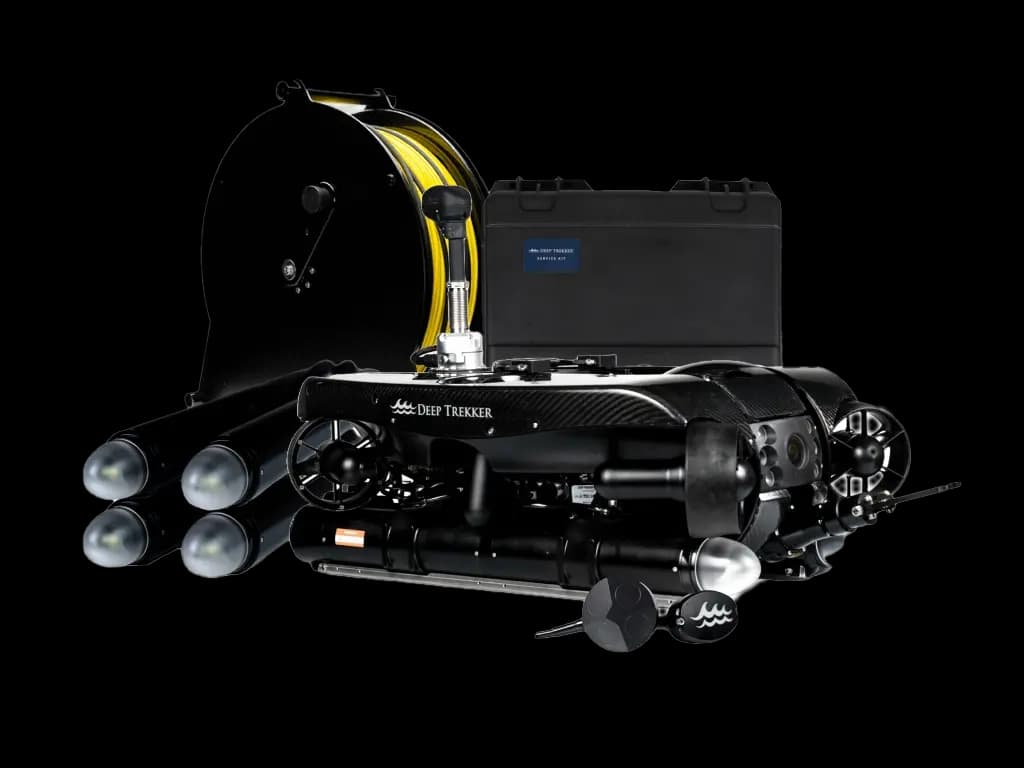

REVOLUTION ROV | Package
The REVOLUTION is the most intuitive and stable ROV for underwater surveys and inspections, built tough to survive harsh underwater conditions to accomplish complex missions. All REVOLUTION ROV purchases include a complimentary online training session with our Technical Trainer. This free session allows you to gain full understanding of the advanced features available on the REVOLUTION to set you up for optimal performance.Learn More
REVOLUTION Spec Highlights
ROV General Specs
|Width:||440 mm (17.3”)|
|Height:||235 mm (9.3”)|
|Length:||717 mm (28.2”)|
|Weight (in air):||26 kg (57 lb)|
|Body Material:||Anodized Machined Aluminum, Carbon Fiber, Stainless Steel, & Buoyancy Foam|
|Window Material:||Sapphire & Acrylic|
|Depth Rating:||305 m (1000 ft)|
|Operating Temp:||-10°C to 50°C (14°F – 122°F)|
|Case (optional):||Custom Pelican Air 1650, Handle and Wheels|
|Warranty:||1 Year – Parts and Labor (optional 2-3)|
Lights and Camera
|Video:||UHD 4K - 3840X2160||720p - 1280x720, 30FPS 0.001 Lux,260° Total Range of View|
|Lights:||High Efficiency LED||Fully Dimmable, 8,400 - 11,800 Lumens|
Deep Trekker reserves the right to amend these specifications at any time without notice.
When everything was said and done, all three forebay inspections were completed 100% satisfactory, were done safer, faster and with the innovation of using the (REVOLUTION ROV) vs. divers has the ability to save my company millions for the investment of a few thousand into an ROV.
Operations Officer, Nuclear Power Facility, Midwest USA
Our larger ROV has not been on a job site because its use was not anticipated and its footprint was just too large. We purchased the DTG2 to fill the gap we had. It’s small, very portable and the video feed is reasonable. We have shelved drop cameras that cost more than this unit.
Operations Officer, Environment Canada
Nice and handy ROV. A perfect alternative to divers when you need eyes underwater. Virtually no preparation needed. Just bring the case to your work site, take out the ROV, connect the remote and throw it into the water.
Expeditionary ready ROV
The REVOLUTION is designed to be deployed within minutes. The remotely operated vehicle and its components (controller, reel, USBL, sonar, etc) are completely battery operated, allowing the system to be deployed from anywhere.
Advanced stability and control
Powered by BRIDGE, the REVOLUTION ROV provides advanced stability in underwater environments. Equipped with automated station holding the camera, sonar, and manipulator arm are capable of rotating 260° for situational awareness.
Six integrated vectored thrusters
The 6 vectored thrusters allow for lateral movement side to side and precise turning forward and backward. Allowing for maximum control and advanced station holding.
Fully assembled, tested and ready operate
The mission ready REVOLUTION ROV requires limited setup. An expeditionary system that allows operators to take it out of the box and into the water within minutes.
Engineered with carbon fiber and stainless steel, REVOLUTION delivers dramatic power, enhanced capabilities and performance.
It is well suited for offshore underwater inspections in various industries including, aquaculture, energy, naval defense, and marine research.
Powered by BRIDGE Technology
An intelligent, technology platform from Deep Trekker. An operating system designed with custom hardware and software; for control, integration, communication and enhanced operation. Deep Trekker BRIDGE leverages the latest in technology to provide solutions that are intuitive and easy to use for its customers.
Simple user interface
Integrated sonar screen overlay
Recordable heads-up display data (HUD)
Large clear screen & simple controls
Diveable underwater controller option
With an improved intelligence platform, REVOLUTION has the capability to integrate with current and future third-party products.
Equip your REVOLUTION with mission specific tools and sensors. From battery-assisted tether reel, underwater controller, imaging sonars, USBL positioning, and many more.
The DTG3 ROV
The DTG3 ROV includes everything you need for underwater inspections up to 200 m (656 ft). It provides instant eyes under the water and its portable design requires just one carrying case. Designed with our patented pitching system, internal batteries and handheld controller, the DTG3 is the latest innovative ROV system for underwater inspections.
