DTG3 ROV AUSTRALIA
DTG3 ROV Packages

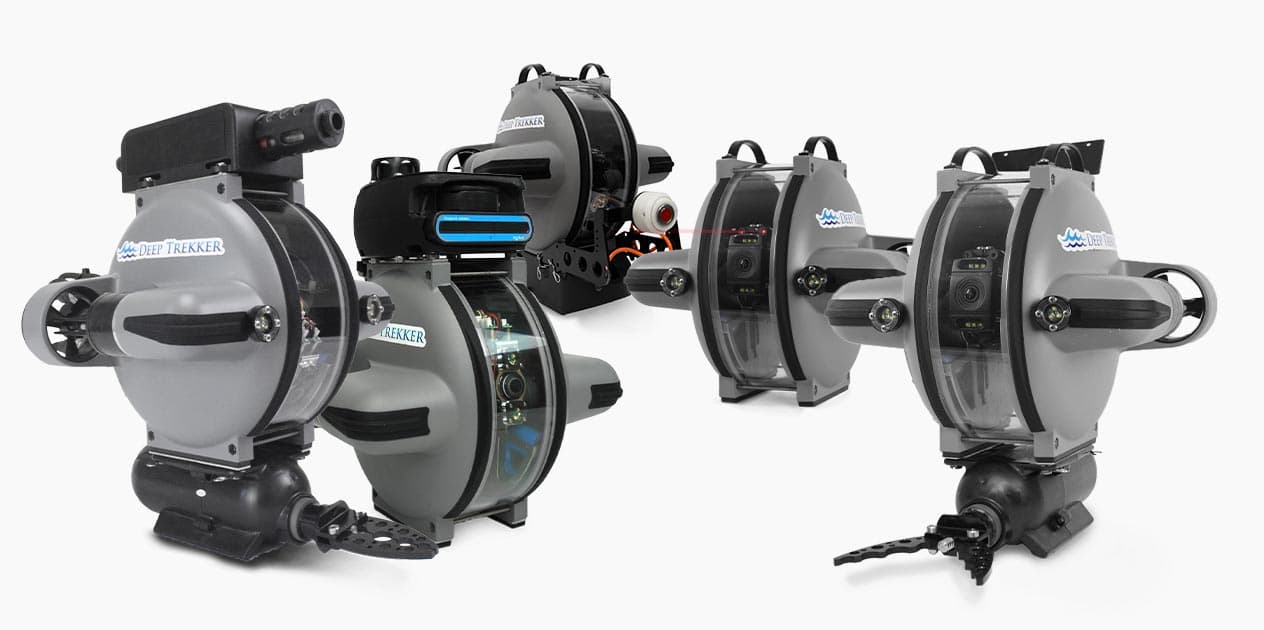

Meet the DTG3 remotely operated vehicle
DTG3 is a mini observation-class underwater ROV built to provide operators the ability to quickly deploy and visually inspect within underwater environments.
Take control of your next underwater operation with the proven DTG3 remotely operated vehicle.
Meet the DTG3 remotely operated vehicle
DTG3 is a mini observation-class underwater ROV built to provide operators the ability to quickly deploy and visually inspect within underwater environments.
Take control of your next underwater operation with the proven DTG3 remotely operated vehicle.
AT A GLANCE
Depth rating to 200 meters (656 feet)
Easy to use

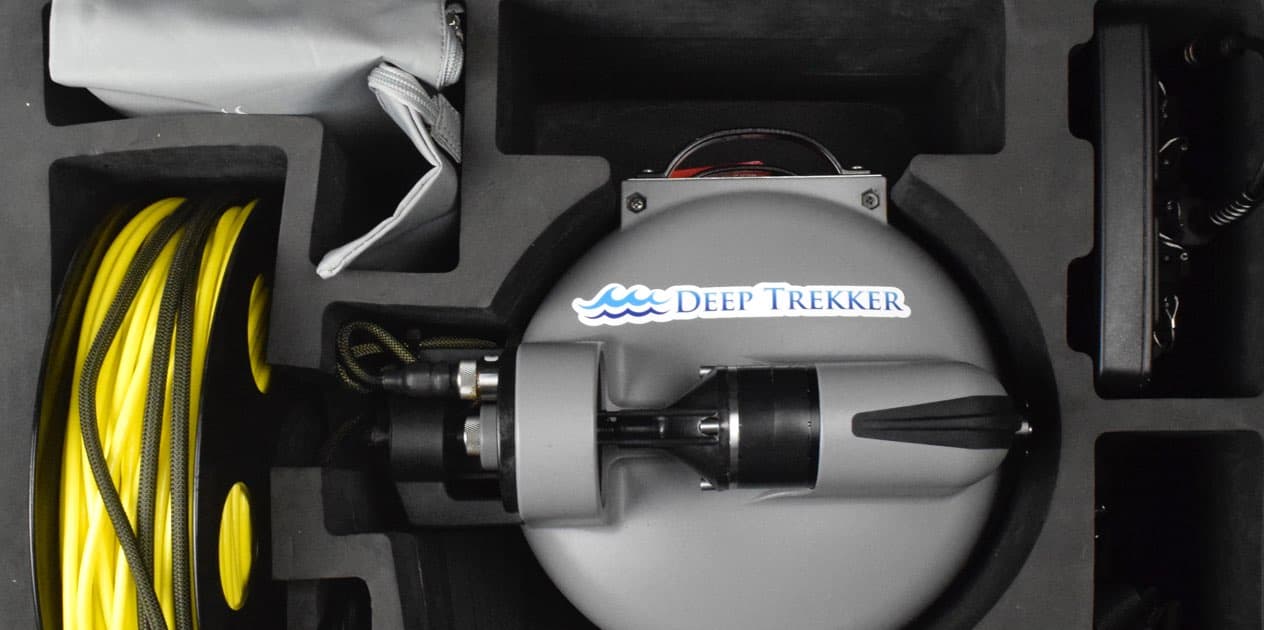

One carrying case
Low maintenance
Extreme maneuverability
Built to last
Versatile; explore various underwater environments
270 degree camera rotation allows you to quickly inspect submerged infrastructure
Fully assembled, tested and ready to operate
Our DTG3 ROVs are delivered pre-assembled and ready to take on your underwater tasks.
Expanded field of view
View the full picture underwater. The DTG3 is equipped with an internal pivoting Full HD camera. Rotate the camera 270-degrees above and below the unit while holding its position in the water.
Customize your DTG3 ROV
Not just an underwater camera - the DTG3 is constructed with multiple communications and external ports. The system can be customized with a variety of sensors, manipulators, and sonars to accommodate various underwater operations.
Weatherproof handheld controller
Weatherproof handheld controller
Specification Highlights
ROV General Specs
| Width: | 325 mm (12.8”) |
| Height: | 258 mm (10.2”) |
| Length: | 279 mm (11.0”) |
| Weight (in air): | 8.5 kg (18.7 lb) |
| Body Material: | Die Cast Aluminum |
| Window Material: | Acrylic |
| Depth Rating: | 200 m (656 ft) |
| Operating Temp: | -10°C to 50°C (14°F – 122°F) |
| Drives/Thruster: | Magnetically Coupled/Sealed |
| Case (option): | Custom Pelican Air 1637 Handle and Wheels |
| Warranty: | 1 Year – Parts and Labor (optional 2-3) |
Lights and Camera
| Video: | Enhanced 4K Camera, 270° Total Range of View |
| Picture: | JPG 8mp |
| Lights: | High Efficiency LED, Fully Dimmable, 1000 Lumens Tracking with Camera, Optional 1000-4400 Lumens Add-ons |
Deep Trekker reserves the right to amend these specifications at any time without notice.
Extreme maneuverability
With expert engineering and the help of gravity, the ROV shell and thrusters can be rotated while gravity holds down the internal semi-circle weighted frame. This allows the ROV to drive straight up and down, side to side, forwards and backwards while using the same thrusters. Some call it magic, but we like to call it innovation.
Powered by BRIDGE Technology
An intelligent, technology platform from Deep Trekker. An operating system designed with custom hardware and software; for control, integration, communication and enhanced operation. Deep Trekker BRIDGE leverages the latest in technology to provide solutions that are intuitive and easy to use for its customers.
