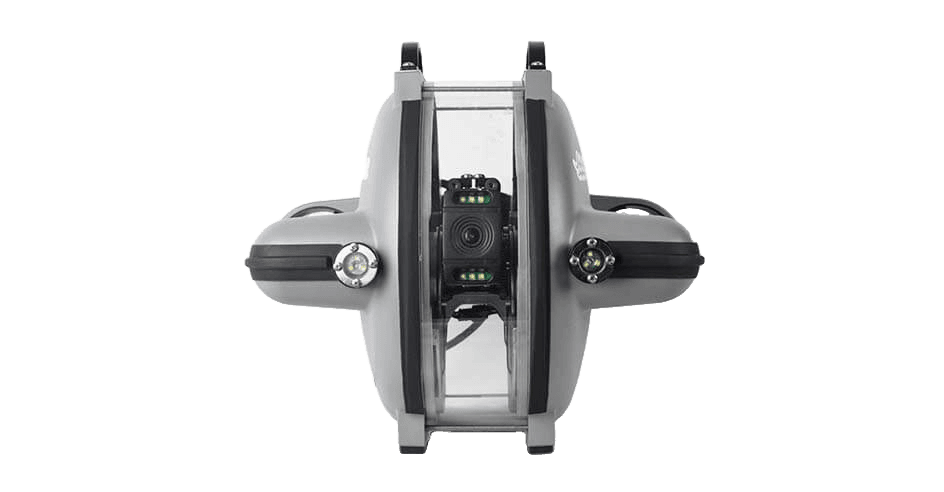

DTPod Underwater CCTV Camera
Inspection and monitoring drop camera for underwater inspections and permanent installations, providing high-resolution video to the surface.
At a Glance
Self-cleaning lens
Depth rated to 305 m (1000 ft)
Fully submersible
One carrying case
Low maintenance
Steerable
Environmental sensor
Robust construction
Durable, self-cleaning underwater inspection cameras
The DTPod is portable, durable and easy to operate, designed to withstand lengthly installations and 360 degree inspections underwater. Simply plug in the controller topside and use the 360 degree pan and tilt camera to monitor fish health, feeding time or submerged infrastructure. The same splash proof controller allows access to an entire fleet of installed cameras without having to maneuver large, bulky equipment or risk having a laptop close to the water.
DTPod Spec Highlights
DTPod General Specs
| Width: | 230 mm (9”) |
| Height: | 225 mm (8.9”) |
| Weight: | 10 kg (22 lb) |
| Body Material: | 316 Stainless Steel |
| Window : | Acrylic, Wiper |
| Depth Rating: | 305 m (1000 ft) |
| Operating Temp: | -10°C to 50°C (14°F – 122°F) |
| Add-on: | Case & Reel Option |
| Warranty: | 1 Year – Parts and Labor (optional 2-3) |
Tether
| Tether Diameter: | 5.5 mm (0.22") - 6.5 mm (0.26") |
| Maximum Length: | 300 m (984 ft) |
| Min. Breaking Strength: | 90 kg (200 lb) |
ROV Controller
| Screen: | 178 mm (7") Wide-Angle LCD |
| Controller: | 16:9 Up to 4K Recording Weatherproof Connectivity USB, SD, HDMI and Ethernet |
Lights and Camera
| Video: | 1920 x 1080 HD, 30 FPS, Color, 0.001 Lux (low light), 360° Total Range of View |
| Picture: | JPG 2mp |
| Lights: | 1000 Lumens - Dimmable |
Deep Trekker reserves the right to amend these specifications at any time without notice.
360 Degree viewing
A pan and tilt camera comes standard with the purchase of the DTPod. View below, above or in any direction underwater using the handheld controller from the surface.
Expandable system
The splash-proof controller allows access to an entire fleet of installed remote underwater cameras without having to maneuver bulky equipment or risk having a laptop close to the water.
Monitor feeding
Compliance surveys
Monitor fish health
Bridge inspections
Submerged infrastructure inspection
Water tank inspection
Inspection
Manhole inspection
Submersible CCTV Camera Add-Ons
The DTPod is designed for mix and match customizable options, best suited for your inspection site. Optional tether lengths and features including a depth sensor and wipers are available.
