Cygnus Thickness Gauge | DT640

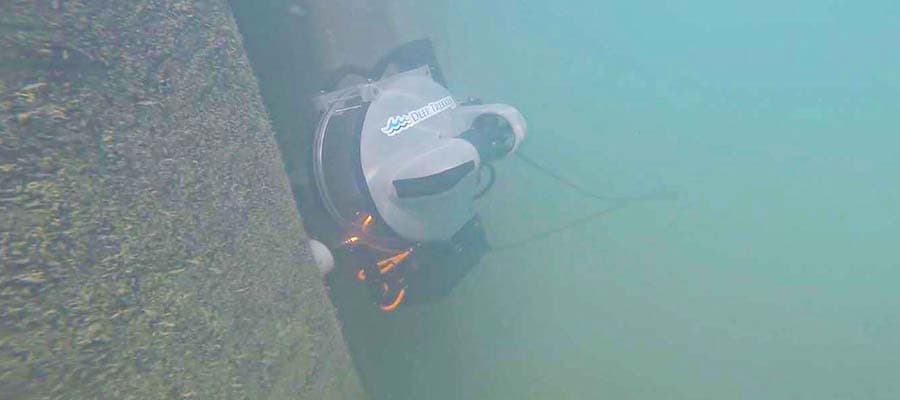

Cygnus's industry-leading ultrasonic thickness gauge can be integrated onto your magnetic crawler, allowing you to evaluate the thickness of steel on tanks, hulls or other metal surfaces without needing dive intervention or draining the asset.
Error adding item to quote
Added to quote
0.1 mm accuracy
Readings in seconds
Modular add-on
Reads through 12mm of marine growth

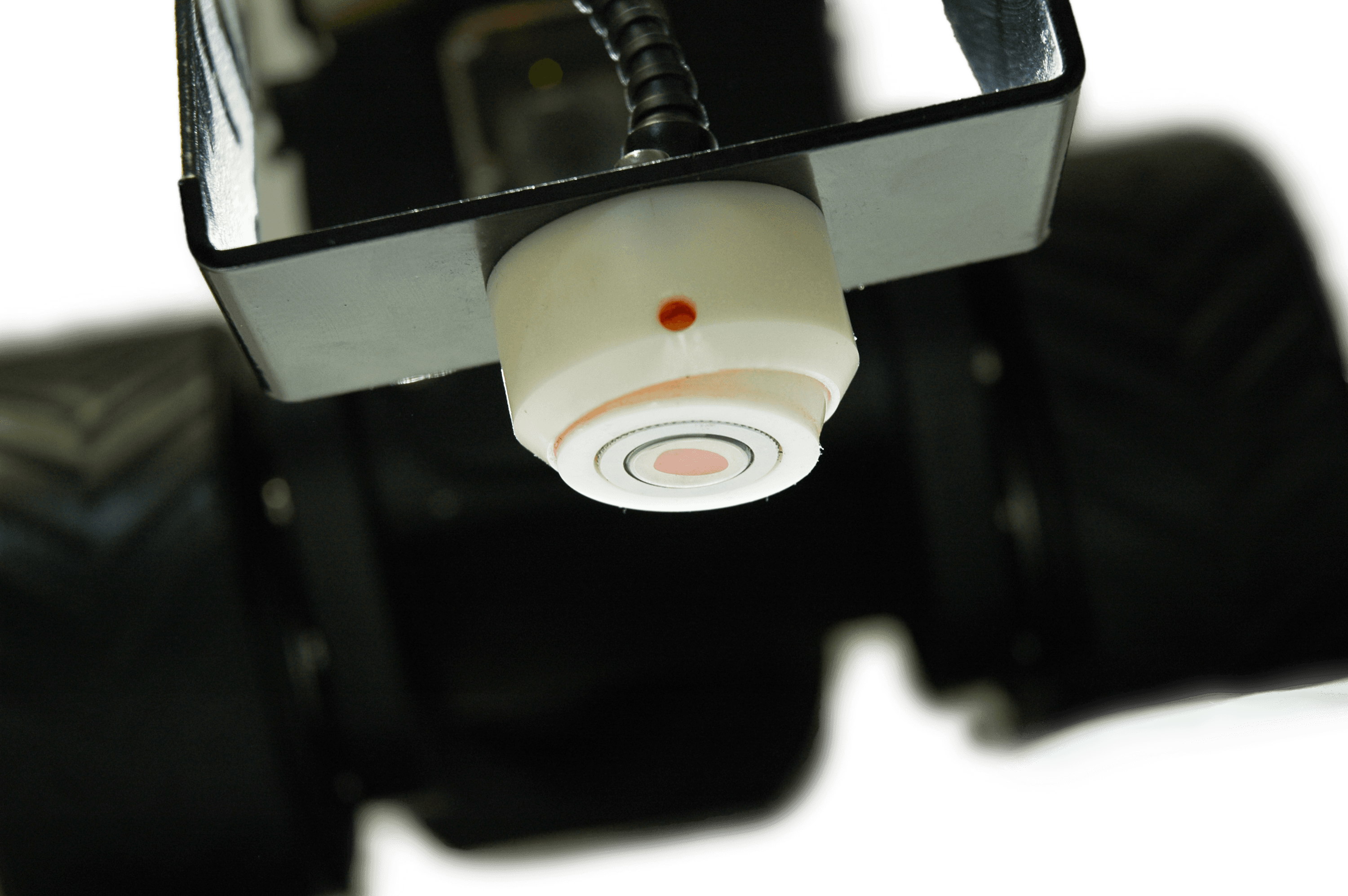

Non-destructive testing tool, the ultrasonic thickness gauge probe
This ultrasonic thickness (UT) probe presses on the surface, taking an accurate measurement even through marine growth or coatings. The data is then displayed and recorded via Cygnus software on a laptop.
The probe is able to take readings through up to 1/2" or 12mm of soft marine growth or coatings to take a reading of the steel. This is a great tool for corrosion surveys for UWILDs on FPSOs or Vessels, as well as for steel tanks and pipes and other surfaces.
Cygnus thickness gauge specifications
| Size | 6.299″ x 2.441″ (160 mm x 62 mm) |
|---|---|
| Power | 7.0 – 30 V dc @ 150 mA (max) |
| Weight | 19.4 oz (550 g) |
| Display | PC or Laptop with VGA (not included) |
| Testing | Tested to 1,500 ft (500 m) depth |
| Accuracy | 0.005″ (0.1 mm) when calibrated in accordance with Cygnus Instruments calibration procedures |
| Approvals | RINA Type Approved |
| Materials | Sound velocities between 1000 m/s and 9995 m/s |
| Standards | Designed for EN 15317 |
| Resolution | 0.002″ (0.05 mm) |
| Environmental | RoHS, WEEE compliant |
| Communications | RS-422, Simplex Single Pair, 2400 Baud |
| Operating Temp | 14°F to 122°F (-10°C to +50°C) |
| Measurement Range in Steel | 0.110″ – 9.995″ (3 mm – 250 mm) with 2.25 MHz probe | 0.065″ – 6.000″ (2 mm – 150 mm) with 3.5 MHz probe | 0.045″ – 4.000″ (1 mm – 50 mm) with 5.0 MHz probe |
Non-destructive testing tool, the ultrasonic thickness gauge probe
This ultrasonic thickness (UT) probe presses on the surface, taking an accurate measurement even through marine growth or coatings. The data is then displayed and recorded via Cygnus software on a laptop.
The probe is able to take readings through up to 1/2" or 12mm of soft marine growth or coatings to take a reading of the steel. This is a great tool for corrosion surveys for UWILDs on FPSOs or Vessels, as well as for steel tanks and pipes and other surfaces.
Cygnus thickness gauge specifications
| Size | 6.299″ x 2.441″ (160 mm x 62 mm) |
|---|---|
| Power | 7.0 – 30 V dc @ 150 mA (max) |
| Weight | 19.4 oz (550 g) |
| Display | PC or Laptop with VGA (not included) |
| Testing | Tested to 1,500 ft (500 m) depth |
| Accuracy | 0.005″ (0.1 mm) when calibrated in accordance with Cygnus Instruments calibration procedures |
| Approvals | RINA Type Approved |
| Materials | Sound velocities between 1000 m/s and 9995 m/s |
| Standards | Designed for EN 15317 |
| Resolution | 0.002″ (0.05 mm) |
| Environmental | RoHS, WEEE compliant |
| Communications | RS-422, Simplex Single Pair, 2400 Baud |
| Operating Temp | 14°F to 122°F (-10°C to +50°C) |
| Measurement Range in Steel | 0.110″ – 9.995″ (3 mm – 250 mm) with 2.25 MHz probe | 0.065″ – 6.000″ (2 mm – 150 mm) with 3.5 MHz probe | 0.045″ – 4.000″ (1 mm – 50 mm) with 5.0 MHz probe |
