UTILITY CRAWLER BASE PACKAGE
$22,999 USD
Building a custom tank cleaning crawler? Use this package as the base and add any of our vacuum head options and elevated cameras on your quote to configure the best crawler for your potable tank cleaning requirements.
Error adding item to quote
Added to quote
Submersible up to 50m (164')
Zero turn radius - maneuverable
Battery operated up to 8 hours
Anodized aluminum shell
One man portable
Full HD Camera

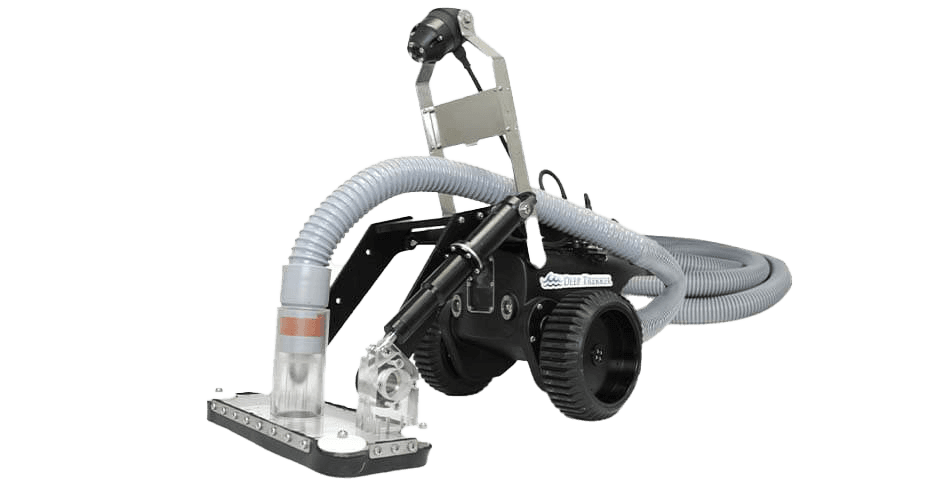

Utility Vacuum Crawler package for cleaning sediment and sludge from the bottoms of water storage tanks.

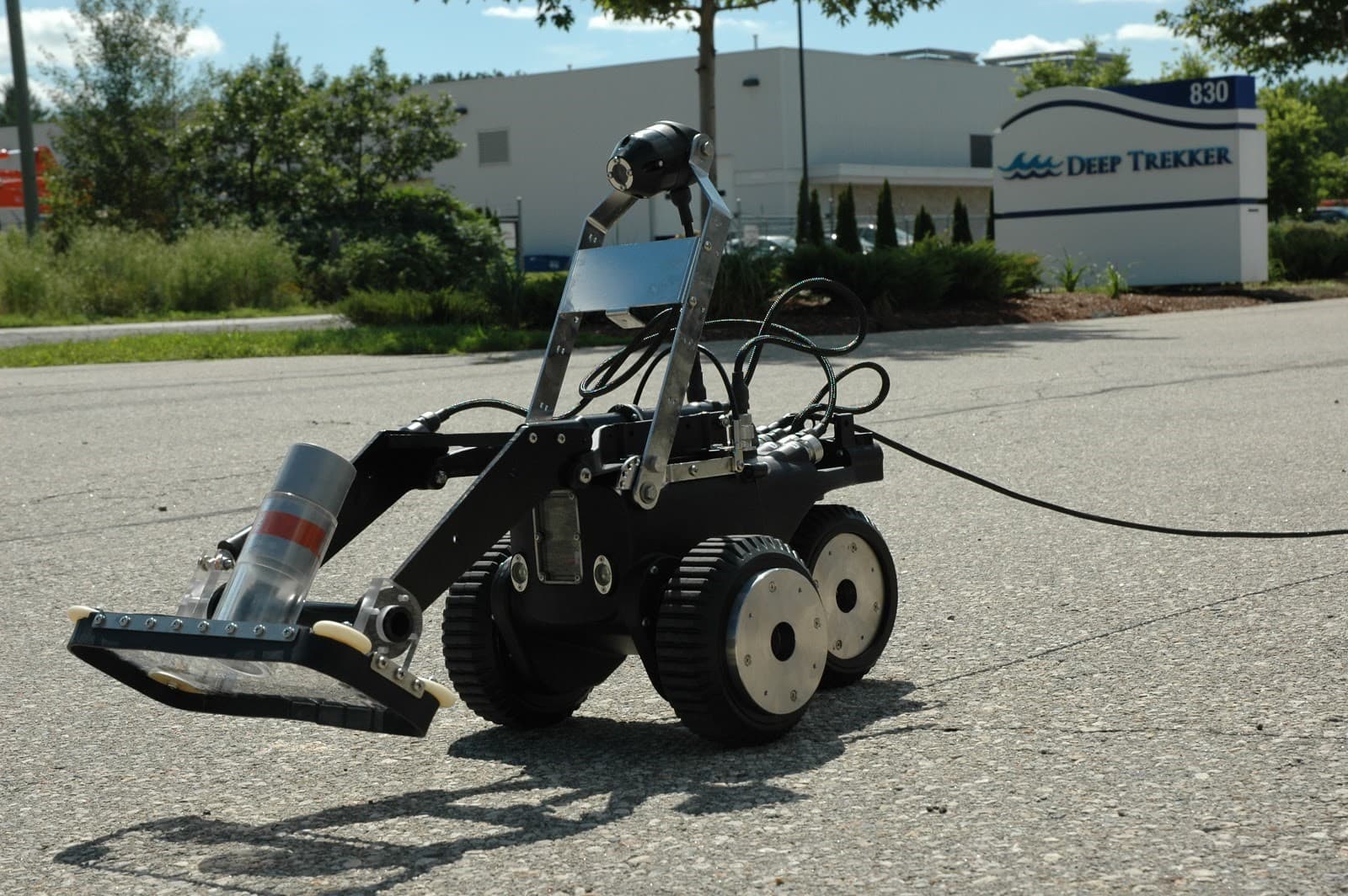

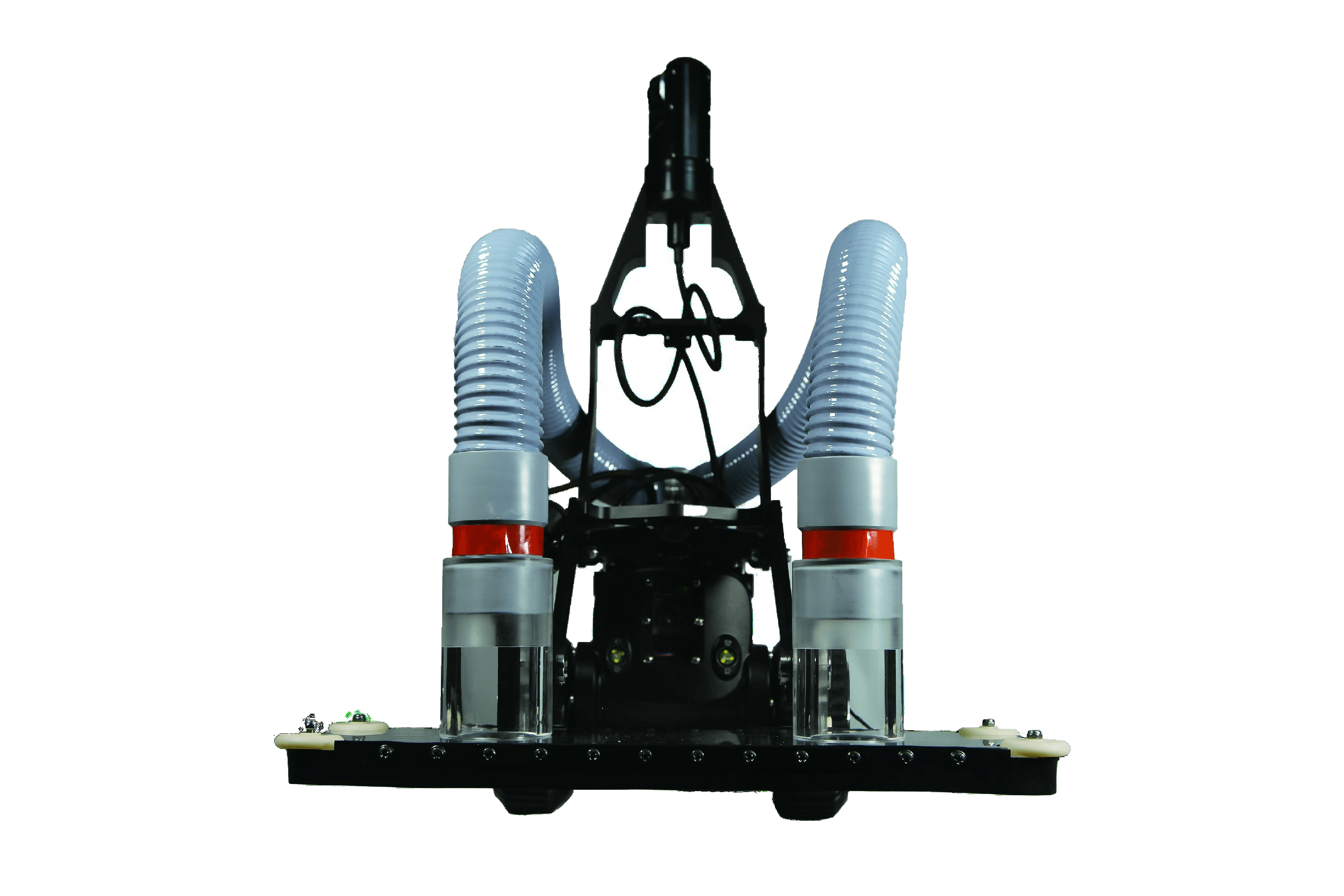

The VAC is a three wheeled crawler with rubber wheels to help with traction in concrete, steel, lined, glass fused to steel and other tank types. The vacuum head can be mounted in front of the vehicle on a dual actuating arm, one actuator tilts the head 20 degrees and the other raises and lowers the head 20 degrees. The head concentrates the suction at the floor of the tank to focus the pumping of water on sediment filled water. The hose connects to a submersible pump outside of the tank. There is a camera on the main body of the crawler that monitors the vacuum head as it removes debris. The package does not include the hose or pump, contact us if you need a recommendation for options locally in your area.
Clean tanks remotely and safely
Use the VAC as an easier, safer and more cost effective alternative to divers operating hoses and pumps to clean a tank.
Robust Design
The VAC is built with anodized aluminum and utilizes our innovative magnetically coupled drive assemblies at the wheels, this eliminates the need for ongoing maintenance and is proven to be reliable long term.
Battery Powered + Hybrid
The utility crawler is battery powered with the ability to trickle charge during operation, allowing you to operate in the most remote locations and switch to a topside power option when needed.
Easy to Sanitize
Avoid the risk of contaminants that are introduced when using divers or other foreign materials. Customers easily apply or dunk the VAC crawler into a 200ppm solution before deploying.

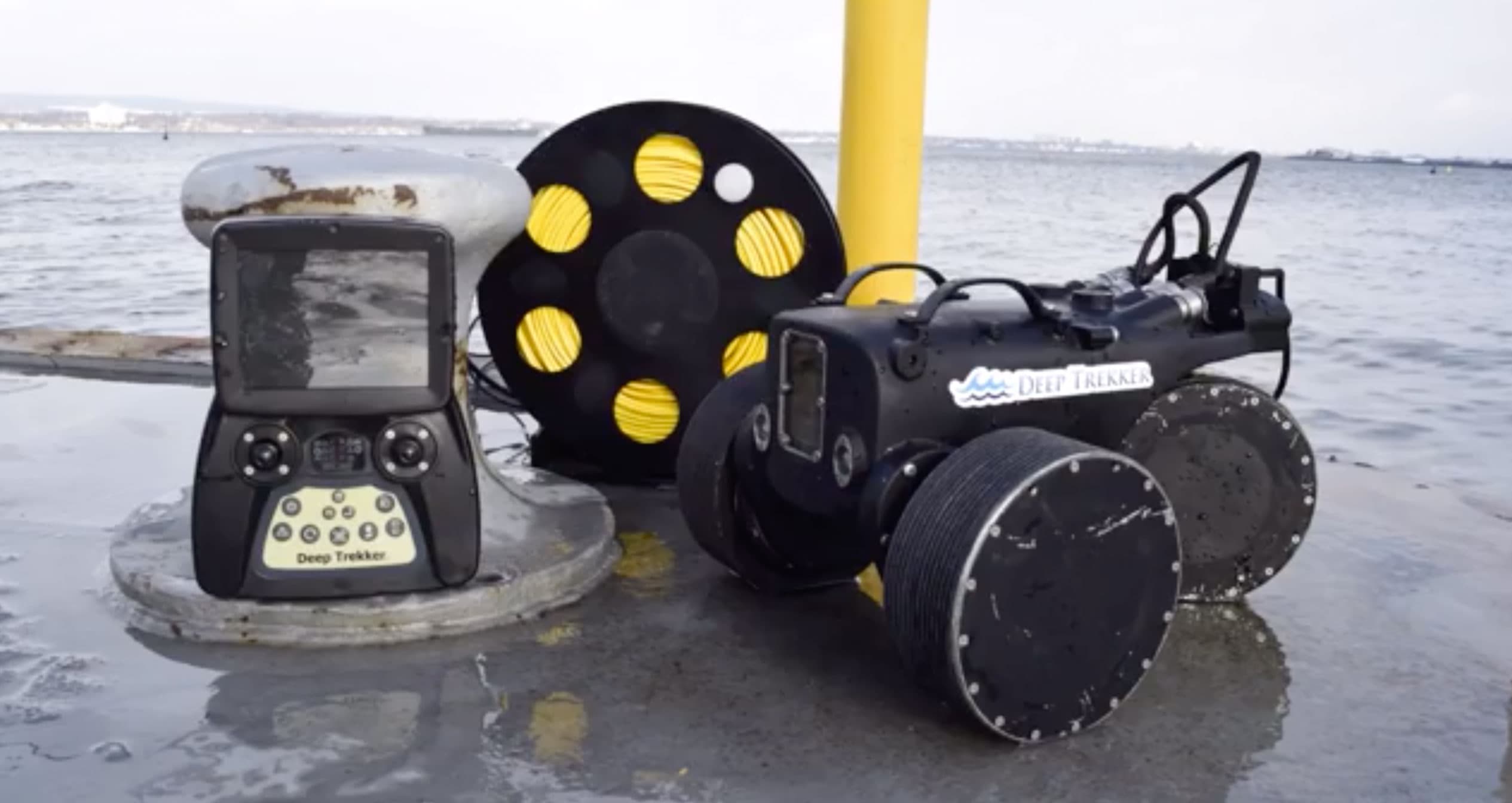

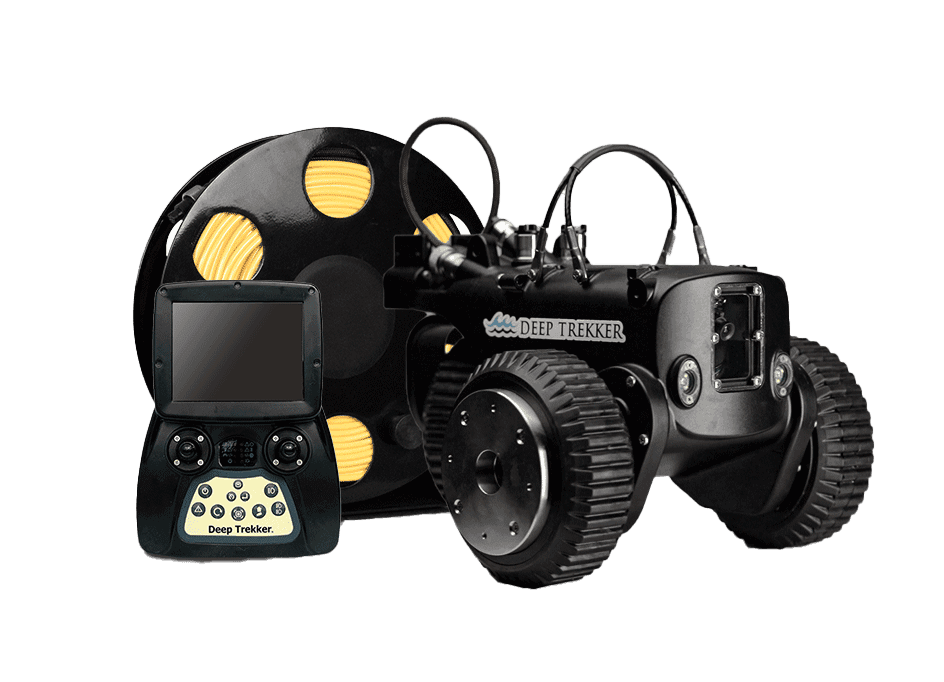

Crawler, Camera, LED floodlights
75 M tether
Heavy duty tether reel with bearings and electrical slip ring for easy tether management
Wheeled Pelican Case
Handheld Controller
Chargers
Utility Crawler - Specs
| Weight | 16.6kg (36.59 lb) |
|---|---|
| Warranty | 1 year – Parts and Labor (extended 2-3 yrs optional) |
| Materials | Stainless Steel Aluminum |
| Main Camera | 1080p, 1 / 2.5, 8MP, 30 FPS, 2.7mm Lens |
| Main LED Lights | High Efficiency LED Flood, 1000 lumens |
| Submersible Depth Rating | 50m (164 ft) |
| Max payload (sensors/tools) | ~20 lb (may be higher depending on application and conditions) |
| Elevating Arm Aux Camera (Optional) | 360° Manual Positioning, Fixed Forward, 1080p, 1 / 2.5, 8MP, 30 FPS, 2.7mm Lens |
Utility Crawler - Wheels Specs
| Turn Radius | 0 m |
|---|---|
| Wheel Options | Patented Magnetic, Rubber |
| Variable Speed | 12 m / min |
Utility Crawler - Dimensions Specs
| Width | 406 mm (13") |
|---|---|
| Height | 228 mm (9") |
| Length | 710 mm (27.95") |
Utility Crawler - Tether Specs
| Tether Length | 50 m - 400 m (164 ft - 1312 ft) |
|---|---|
| Tether Diameter | 6.2 mm (0.24") |
| Tether Construction | Polyurethane Outer Jacket with Embedded Light Weight Synthetic Fibers |
| Max Working Strength | 150 kg (300 lbs) |
Utility Crawler - Tether Real
| Construction | Industrial tough; IP68 |
|---|---|
| Standard Length | 75m (246 ft) |
| Optional Capacity | Up to 400m (1,312 ft) |
Utility Crawler - Drive System
| Power | Planetary Gear Motor (2 pieces) |
|---|---|
| Gear Train | High Strength Oversized Gears |
| Final Drives | Magnetically Coupled |
| Wheel Control | Steerable, Cruise Control, Infinitely Variable (Forward and Reverse) |
Utility Vacuum Crawler package for cleaning sediment and sludge from the bottoms of water storage tanks.
The VAC is a three wheeled crawler with rubber wheels to help with traction in concrete, steel, lined, glass fused to steel and other tank types. The vacuum head can be mounted in front of the vehicle on a dual actuating arm, one actuator tilts the head 20 degrees and the other raises and lowers the head 20 degrees. The head concentrates the suction at the floor of the tank to focus the pumping of water on sediment filled water. The hose connects to a submersible pump outside of the tank. There is a camera on the main body of the crawler that monitors the vacuum head as it removes debris. The package does not include the hose or pump, contact us if you need a recommendation for options locally in your area.
Clean tanks remotely and safely
Use the VAC as an easier, safer and more cost effective alternative to divers operating hoses and pumps to clean a tank.
Robust Design
The VAC is built with anodized aluminum and utilizes our innovative magnetically coupled drive assemblies at the wheels, this eliminates the need for ongoing maintenance and is proven to be reliable long term.
Battery Powered + Hybrid
The utility crawler is battery powered with the ability to trickle charge during operation, allowing you to operate in the most remote locations and switch to a topside power option when needed.
Easy to Sanitize
Avoid the risk of contaminants that are introduced when using divers or other foreign materials. Customers easily apply or dunk the VAC crawler into a 200ppm solution before deploying.
Crawler, Camera, LED floodlights
75 M tether
Heavy duty tether reel with bearings and electrical slip ring for easy tether management
Wheeled Pelican Case
Handheld Controller
Chargers
Utility Crawler - Specs
| Weight | 16.6kg (36.59 lb) |
|---|---|
| Warranty | 1 year – Parts and Labor (extended 2-3 yrs optional) |
| Materials | Stainless Steel Aluminum |
| Main Camera | 1080p, 1 / 2.5, 8MP, 30 FPS, 2.7mm Lens |
| Main LED Lights | High Efficiency LED Flood, 1000 lumens |
| Submersible Depth Rating | 50m (164 ft) |
| Max payload (sensors/tools) | ~20 lb (may be higher depending on application and conditions) |
| Elevating Arm Aux Camera (Optional) | 360° Manual Positioning, Fixed Forward, 1080p, 1 / 2.5, 8MP, 30 FPS, 2.7mm Lens |
Utility Crawler - Wheels Specs
| Turn Radius | 0 m |
|---|---|
| Wheel Options | Patented Magnetic, Rubber |
| Variable Speed | 12 m / min |
Utility Crawler - Dimensions Specs
| Width | 406 mm (13") |
|---|---|
| Height | 228 mm (9") |
| Length | 710 mm (27.95") |
Utility Crawler - Tether Specs
| Tether Length | 50 m - 400 m (164 ft - 1312 ft) |
|---|---|
| Tether Diameter | 6.2 mm (0.24") |
| Tether Construction | Polyurethane Outer Jacket with Embedded Light Weight Synthetic Fibers |
| Max Working Strength | 150 kg (300 lbs) |
Utility Crawler - Tether Real
| Construction | Industrial tough; IP68 |
|---|---|
| Standard Length | 75m (246 ft) |
| Optional Capacity | Up to 400m (1,312 ft) |
Utility Crawler - Drive System
| Power | Planetary Gear Motor (2 pieces) |
|---|---|
| Gear Train | High Strength Oversized Gears |
| Final Drives | Magnetically Coupled |
| Wheel Control | Steerable, Cruise Control, Infinitely Variable (Forward and Reverse) |
