Five Function Manipulator

Push the boundaries of what you’ve ever done with a robot before. Add one or two to your ROV and get unparalleled control over your underwater tasks with the smallest class of submersible robotic manipulators. A Blueprint integration.

Five Function Manipulator

Push the boundaries of what you’ve ever done with a robot before. Add one or two to your ROV and get unparalleled control over your underwater tasks with the smallest class of submersible robotic manipulators. A Blueprint integration.

  • Advanced sonar integration icon

    0.1° Joint Accuracy

  • Modular design   icon

    Modular add-on

  • Grabber Icon

    Adjustable grab force

  • Built to last icon

    Field proven

  • Maneuverability-icon

    Interchangeable end-effectors

  • versatility icon

    Intuitive Master Arm Control

Five Function Manipulator - A Blueprint integration

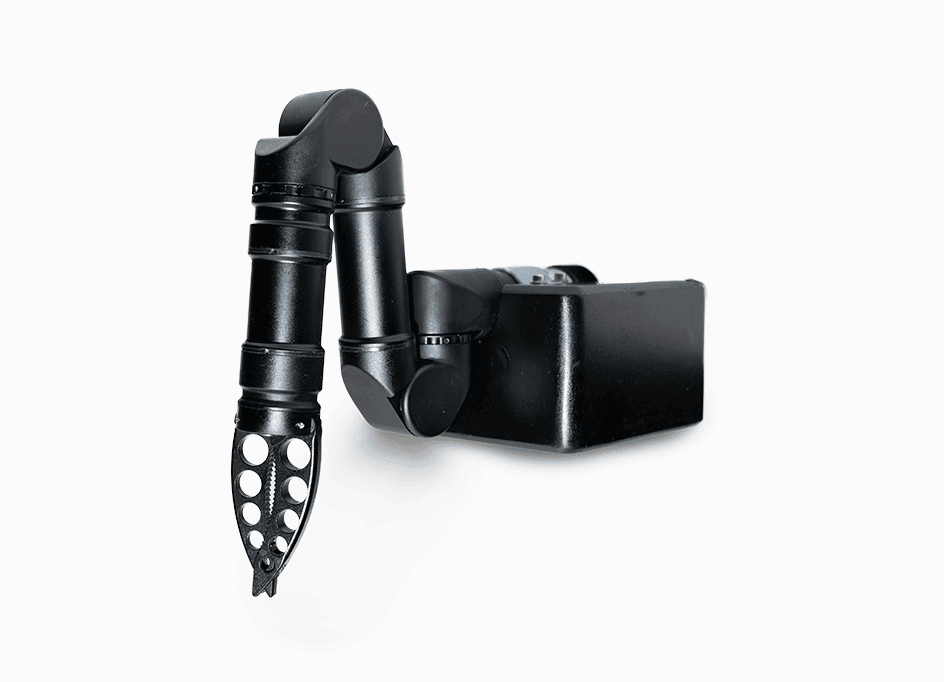

The five function manipulator (Blueprint integration) is a tough and reliable multi-function electric manipulator for harsh environments. With high accuracy joint positioning (0.1°) and adjustable grab force, the manipulator provides users with a reliable and advanced tool to make inspections and intervention tasks easier than ever before.

Anodized aluminium is resistant to corrosion and scratches to take on tasks in the toughest of conditions. Quick and straightforward integration gets the job done efficiently. Recover lost tools or debris in Nuclear settings, manipulate tools or hold onto gates or legs during high current.

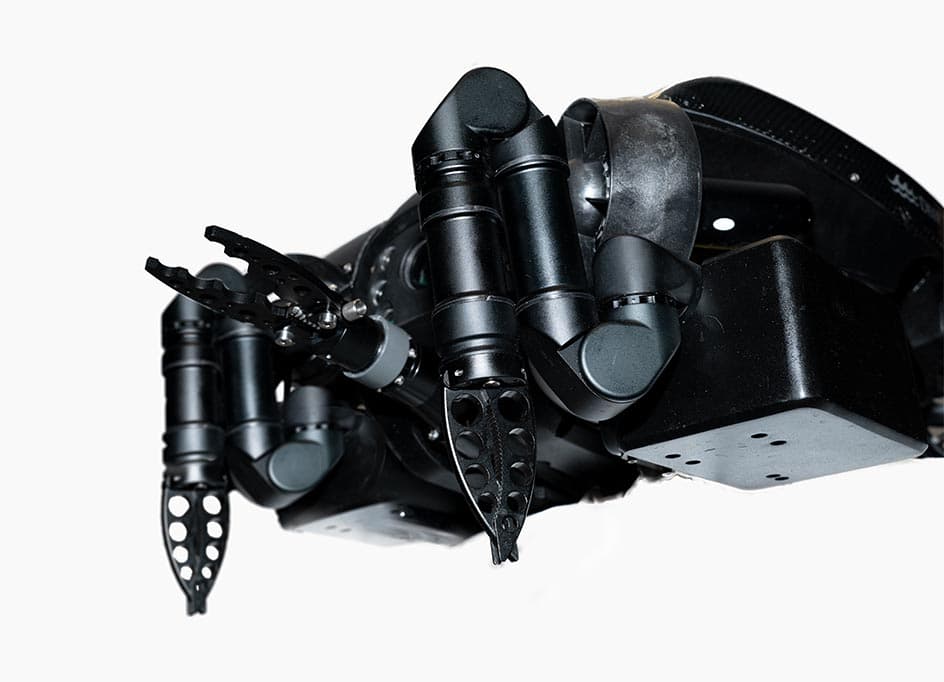

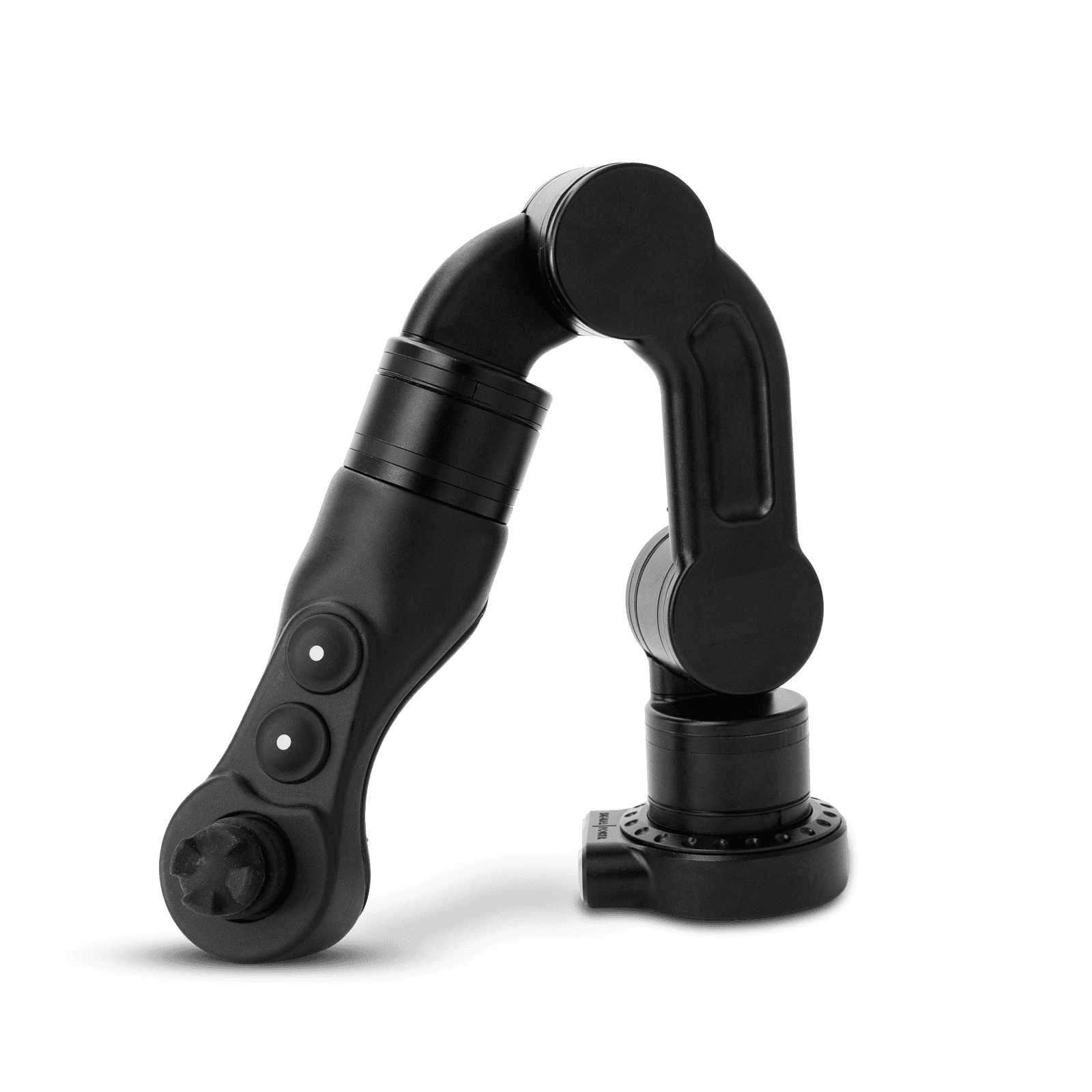

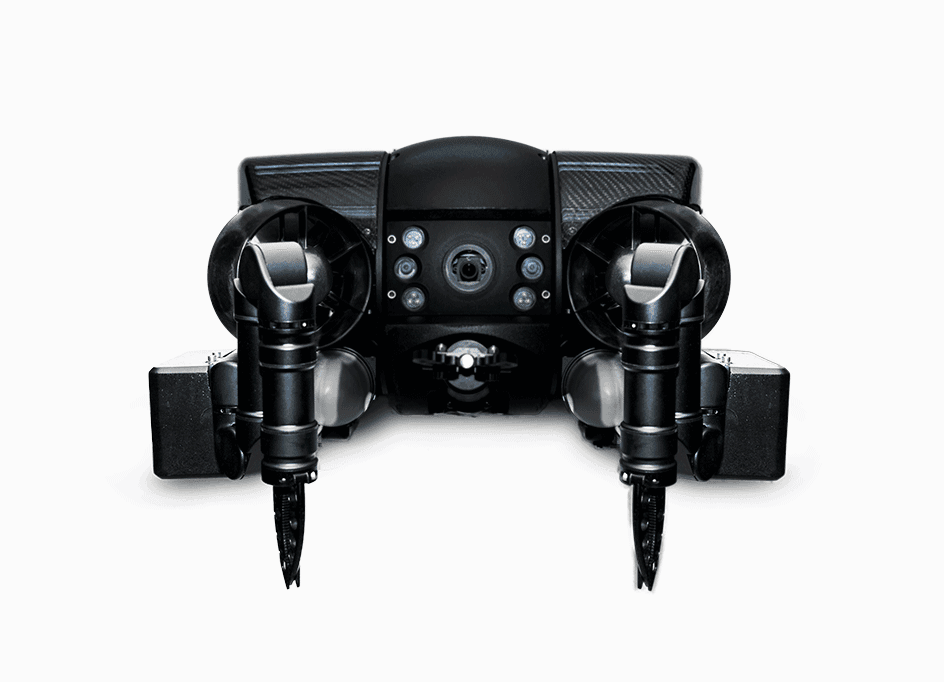

Mount one or two arms to your ROV. Each arm requires a master controller, each set of arms requires laptop operated software. For best results, we recommend operating the ROV in a two-person team with an operator controlling the ROV and an operator operating the arms.

General Specs

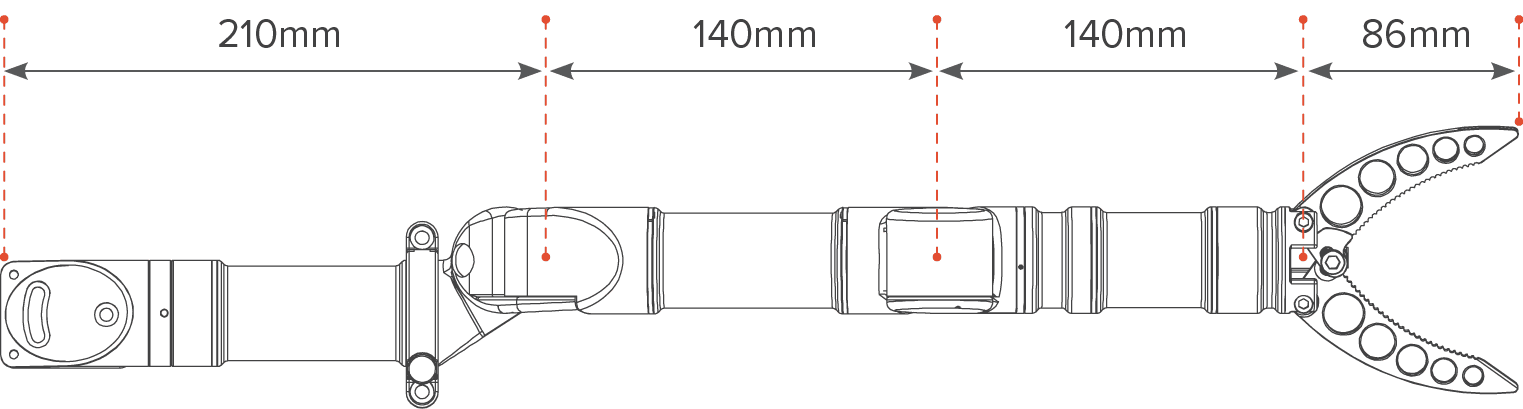

Reach0.4m
Temperature-35°C to 35°C
Depth rating300m
Voltage input18-30V
Weight in water900g
Axial load rating100kg
Max closing force600N
Lift at full reach2.5kg
