Service Parts Kit PHOTON

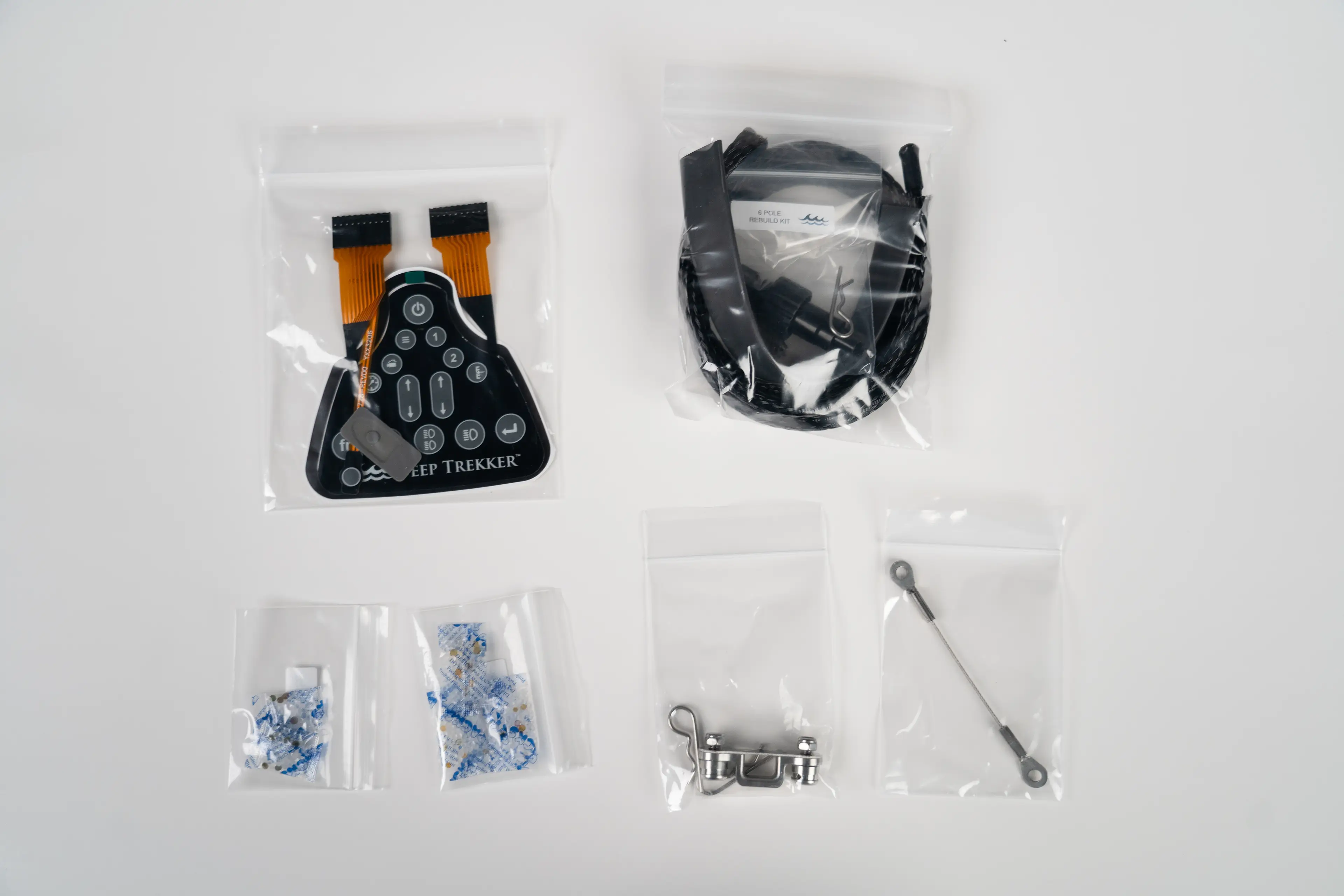

Deep Trekker ROVs are built for the toughest jobs. However, if complications arise, time-sensitive repairs may save immeasurable costs, downtime, or human livelihood. The Service Parts Kit comes with the most crucial spares to keep you up and running.
Error adding item to quote
Added to quote
In the Box
| 7271 - Qty 1 | PORT PLUG, CONTROLLER BULKHEAD |
|---|---|
| 6253 - Qty 1 | REBUILD KIT, 6 POLE TETHER WET END |
| 5298 - Qty 1 | PLUG, SOCKETS TETHER |
| 0517 - Qty 7 | CONTACT, SOCKET SIZE 20 DEUTSCH |
| 5296 - Qty 1 | NUT, TETHER |
| 0156 - Qty 1 | STRAIN RELIEF, DOME M12X1.5 NYLON IP68 |
| 0157 - Qty 1 | O-RING 0.375ID X 1/16 DIA BUNA-N |
| 5122 - Qty 1 | CASE, HARDWARE KIT |
| 8567 - Qty 1 | KNOB, FOAM |
| 6777 - Qty 1 | COVER, SIDE SWITCH |
| 6778 - Qty 1 | SWITCH PACK, MEMBRANE SINGLE |
| 6770-1 - Qty 1 | SWITCH PACK, MEMBRANE CONTROLLER V3 |
| 6295 - Qty 1 | LABEL, CONTROLLER SWITCHES TOP |
| 0208-100-4 - Qty 25 | TIE WRAP, 0.10 X 4 Inches LG NYLON UV BLACK |
| 5360 - Qty 5 | SILICA GEL PACKET, 3 GRAM INDICATING |
| 6207 - Qty 2 | JOYSTICK ASY, 2 AXIS |
| 6199 - Qty 1 | JOYSTICK LINK ASY, 2 AXIS |
| 5705 - Qty 1 | BASE, JOYSTICK HALL EFFECT |
| 5700 - Qty 1 | SLIDE, JOYSTICK |
| 5699 - Qty 1 | KNOB, JOYSTICK |
| 6087 - Qty 1 | SPRING, COMP 5.64MM OD X 0.41MM WIRE 18.4MM LG |
| 5698 - Qty 1 | PLATE, DETENT |
| 6773 - Qty 2 | JOYSTICK ASY, 2 AXIS |
| 5701 - Qty 1 | SHAFT, JOYSTICK |
| 5704 - Qty 1 | MAGNET, 4MM DIA X 3 NdFeB GRADEC N52 |
| 5702 - Qty 1 | SHAFT, CROSS LINK |
| 5351-008 - Qty 1 | DOWEL PIN 2MM X 8MM LG SS |
| 5775 - Qty 1 | KNOB, JOYSTICK |
| 6774 - Qty | JOYSTICK ASY, 1 AXIS |
| 6200 - Qty 1 | JOYSTICK LINK ASY, 1 AXIS |
| 5789 - Qty 1 | SHAFT, CROSS LINK SINGLE |
| 6775 - Qty 1 | KNOB, JOYSTICK |
| 10529 - Qty 1 | EPOXY, 2-PART FAST CURE |
| 7889 - Qty 2 | PLUG ASY, M20 |
| 7857 - Qty 1 | PLUG, M20 |
| 7890 - Qty 2 | ORING, 10MM ID X 1.5MM DIAN BUNA-N |
| 9046 - Qty 1 | THRUSTER ASY, 75MM |
| 9052-2 - Qty 1 | PROP ASY, 75MM |
| 9052-1 - Qty 1 | PROP ASY, 75MM |

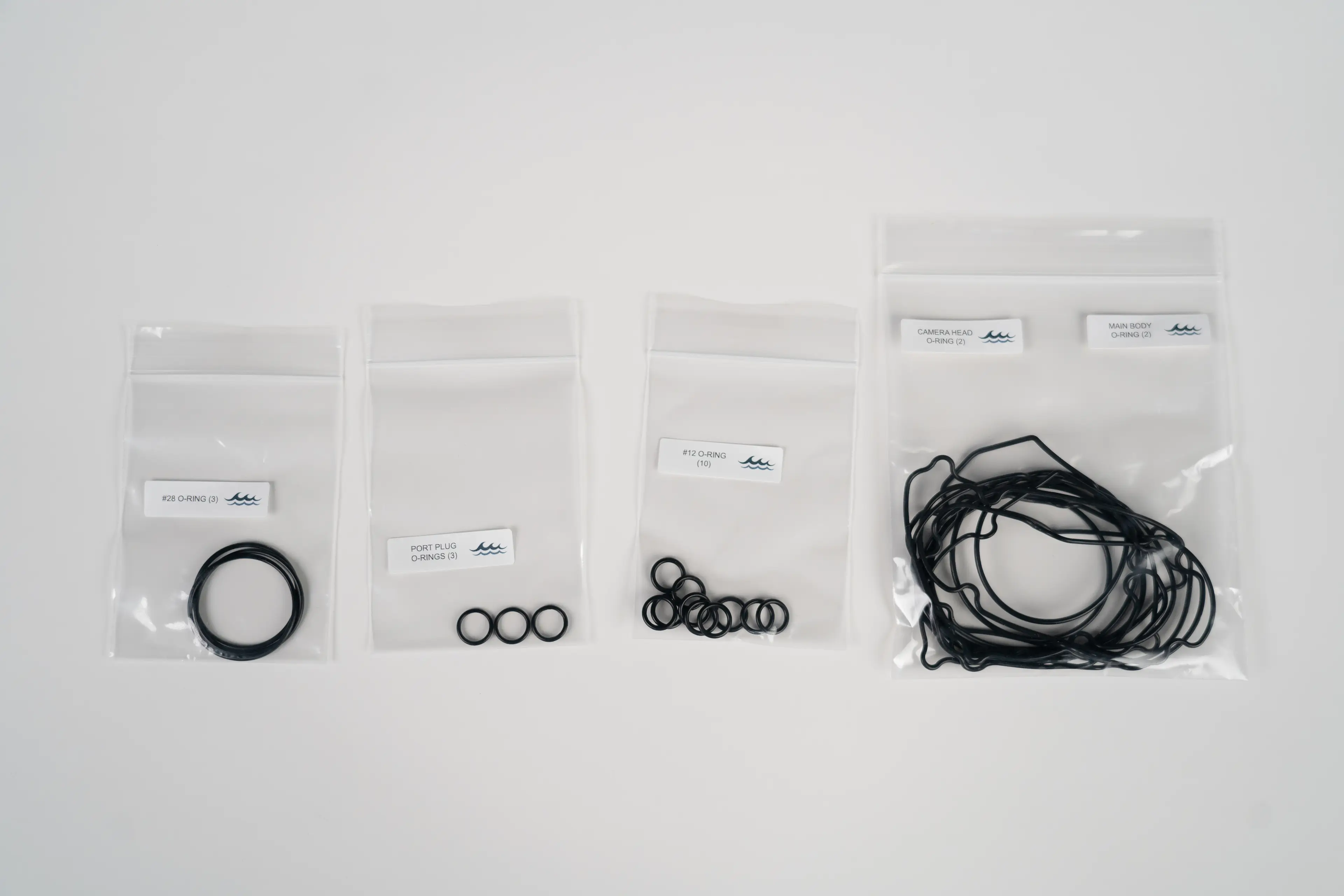

| 9773 - Qty 3 | O-RING BODY PHOTON |
| 0427 - Qty 10 | O-RING 3/4 Inches THREAD FORMING SS |

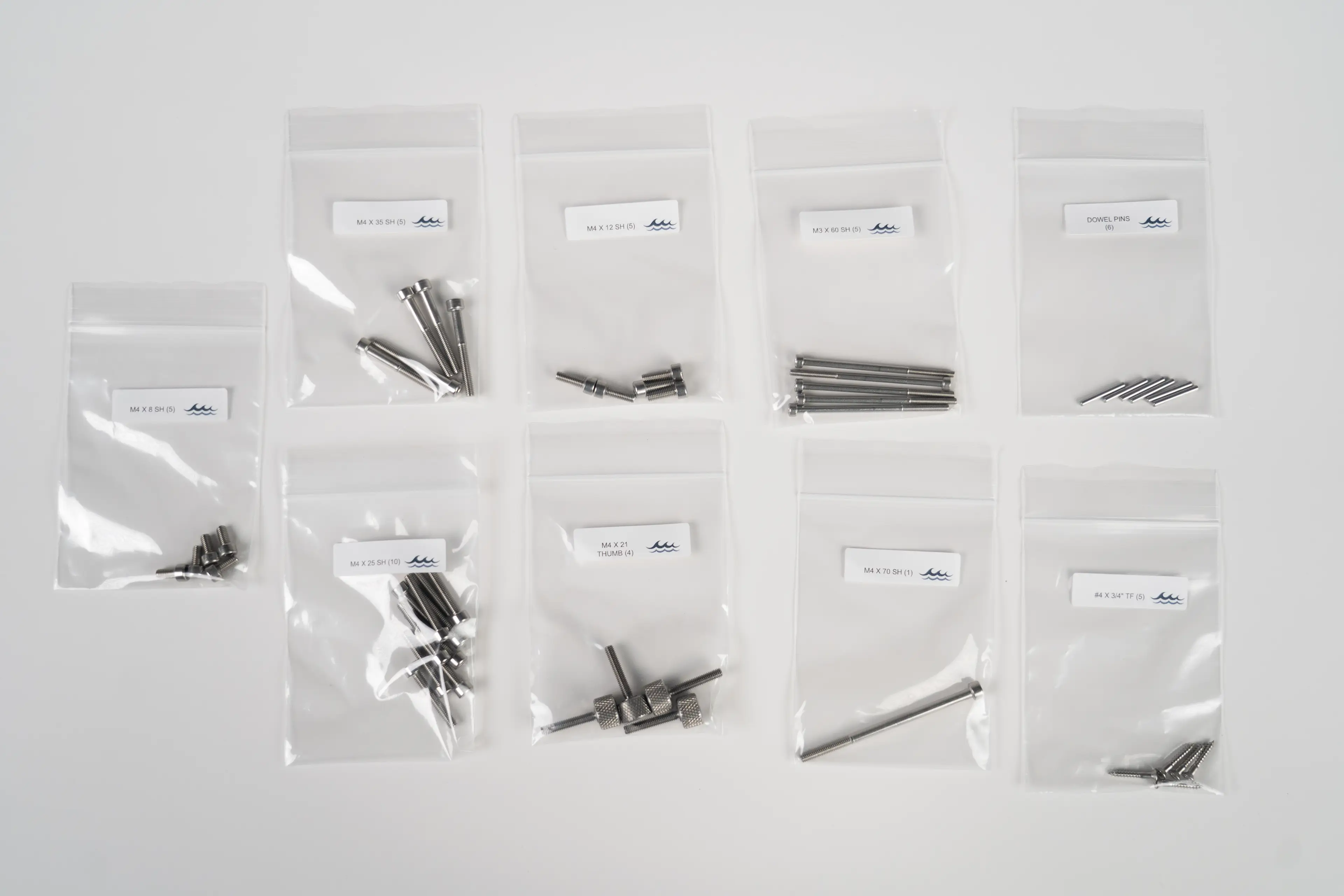

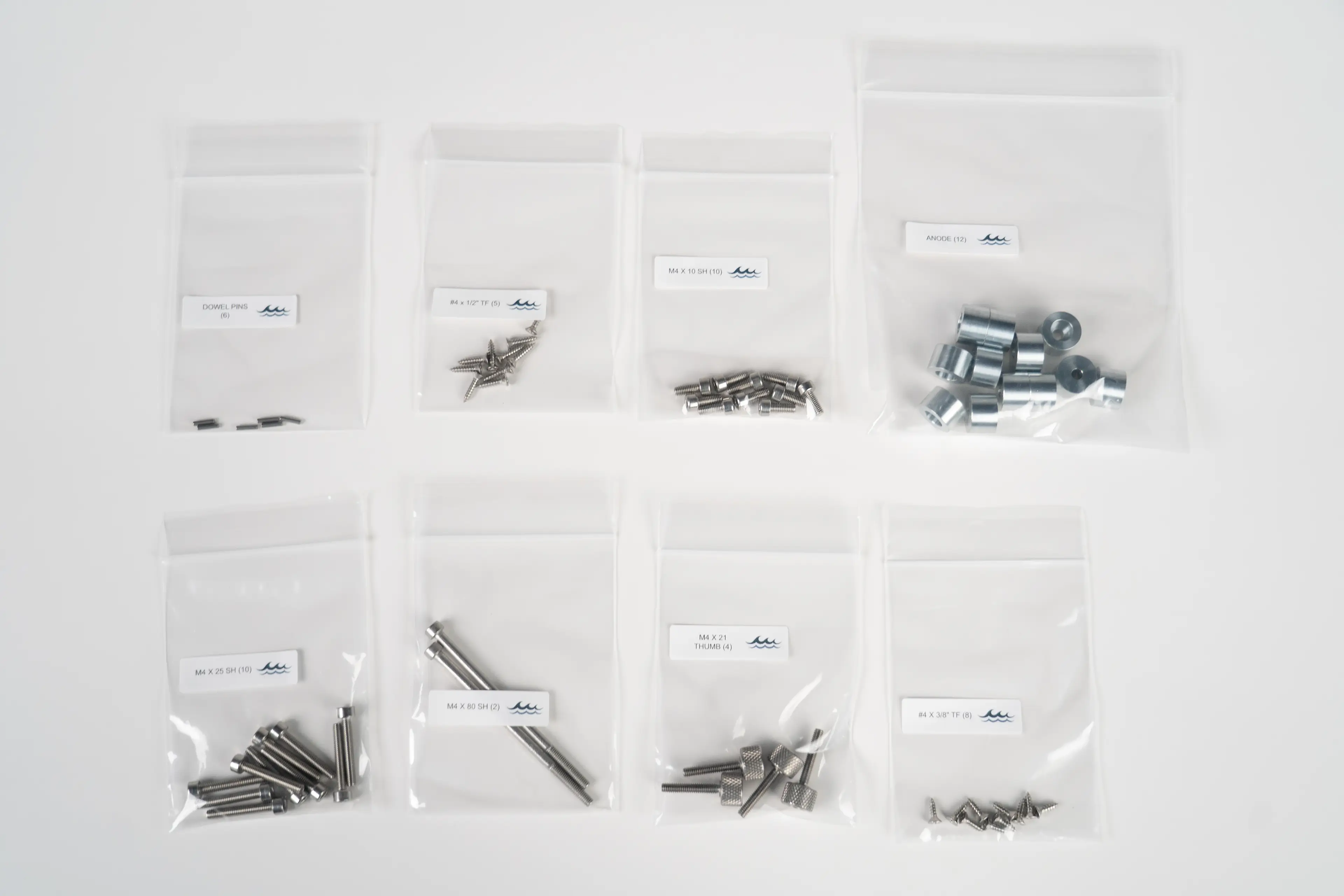

| 0357-038 - Qty 10 | SCREW, #4 X 3/8 Inches THREAD FORMING SS |
| 7273 - Qty 1 | THUMB SCREW, M4X21MM LG |
| 0293-012 - Qty 10 | SOCKET HEAD SCREW, M4-.7 X 12MM LG SS |
| 0157 - Qty 10 | O-RING 0.375ID X 1/16 DIA BUNA-N |
| 0300 - Qty 10 | O-RING 0.1875 Inches ID X 1/16 DIA BUNA-N |
| 0293-025 - Qty 10 | SOCKET HEAD SCREW, M4-.7 X 25MM LG SS |
| 0215-004 - Qty 10 | NUT, NYLOCK M4-0.7 SS |
| 7274-008 - Qty 10 | SOCKET HEAD SCREW, M3-.5 X 8MM LG SS |
| 0046 - Qty 1 | O-RING 0.625ID X 1/16 DIA BUNA-N |
| 0293-010 - Qty 10 | SOCKET HEAD SCREW, M4-7 X 10MM LG SS |
| 7274-006 - Qty 10 | SOCKET HEAD SCREW, M3-.5 X 6MM LG SS |
| 0267 - Qty 10 | O-RING 0.5ID X 1/16 DIA BUNA-N |
| 9688 - Qty 1 | PIN, QUICK RELEASE 5/32 Inches DIA X 13/16 Inches LG |
| 9690 - Qty 2 | ORING, 123MM ID X 2.0MM DIAN BUNA-N |
| 0357-050 - Qty 10 | SCREW, #4 X 1/2 Inches THREAD FORMING SS |
| 10174-012 - Qty 10 | FLATHEAD SCREW, M2-.4 X 12MMLG SS |
