MicronNav USBL

$19,073.00 USD

Pricing shown in USD

The TriTech MicronNav USBL Position System has been specifically designed for small ROVs like the Deep Trekker product line. The MicronNav “Transponder” device responds to acoustic interrogation from the USBL head mounted to the Deep Trekker ROV to provide on screen positioning of the ROV along with a snail trail of where it has traveled.

Customize your Deep Trekker ROV Package for your specific needs with these available add-ons. Add-ons must be selected at time of purchase, or by sending back your unit to the Deep Trekker Service Center.

Description

Share this
Share on FacebookShare on Google+Tweet about this on TwitterShare on LinkedIn

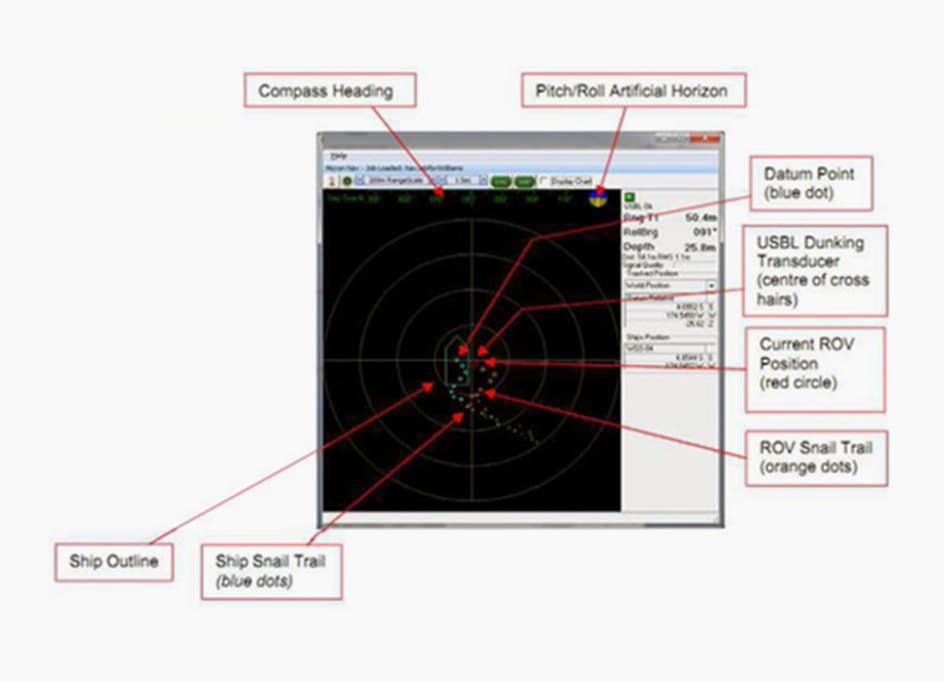

Deep Trekker has now integrated the TriTech MicronNav USBL Position System to intuitively track and position your Deep Trekker ROV when it is underwater. Understanding where the Deep Trekker Remotely Operated Vehicle is when it disappears into the water is one of the most challenging parts of piloting an ROV. With this solution, you can easily track where the ROV has gone and where it is.

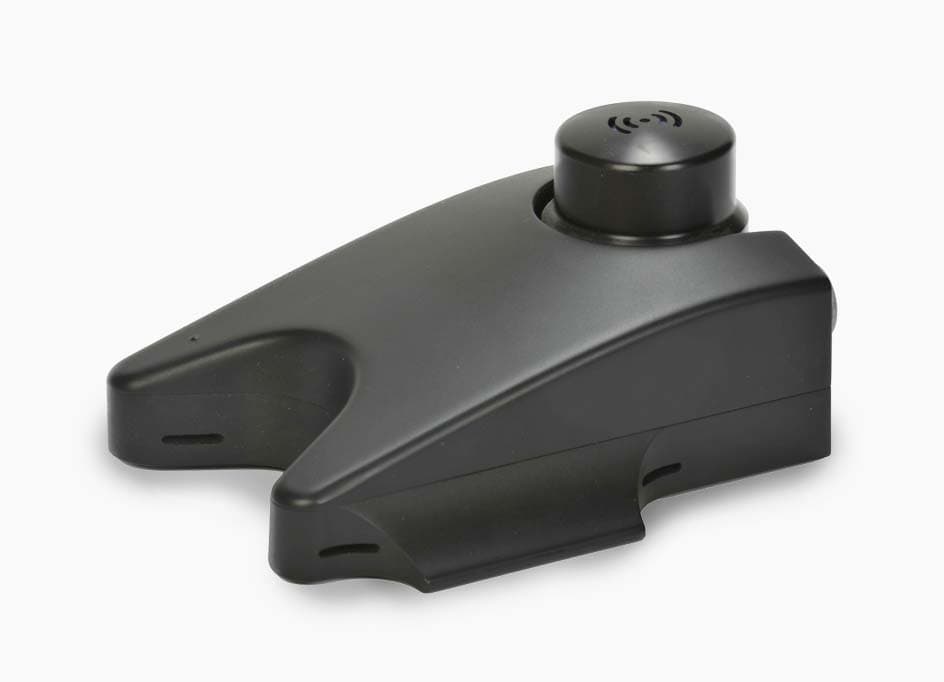

The TriTech MicronNav USBL Position System has been specifically designed for small ROVs like the Deep Trekker product line. The MicronNav “Transponder” device responds to acoustic interrogation from the USBL head mounted to the Deep Trekker ROV to provide on screen positioning of the ROV along with a snail trail of where it has traveled.

The USBL Positioning system has a range of 500 meter horizontally and 150 meter vertically, using a 20-28 kHz.

The dunking transducer can provide a 180 degree coverage, allowing for tracking even in shallow water. Omni-directional coverage is provided by the MicronNav ROV Transponder or Responder.

Easily overlay maps to geo reference such as Google Maps to show real world position of the ROV, multiple charts or maps can be pre-loaded easily.

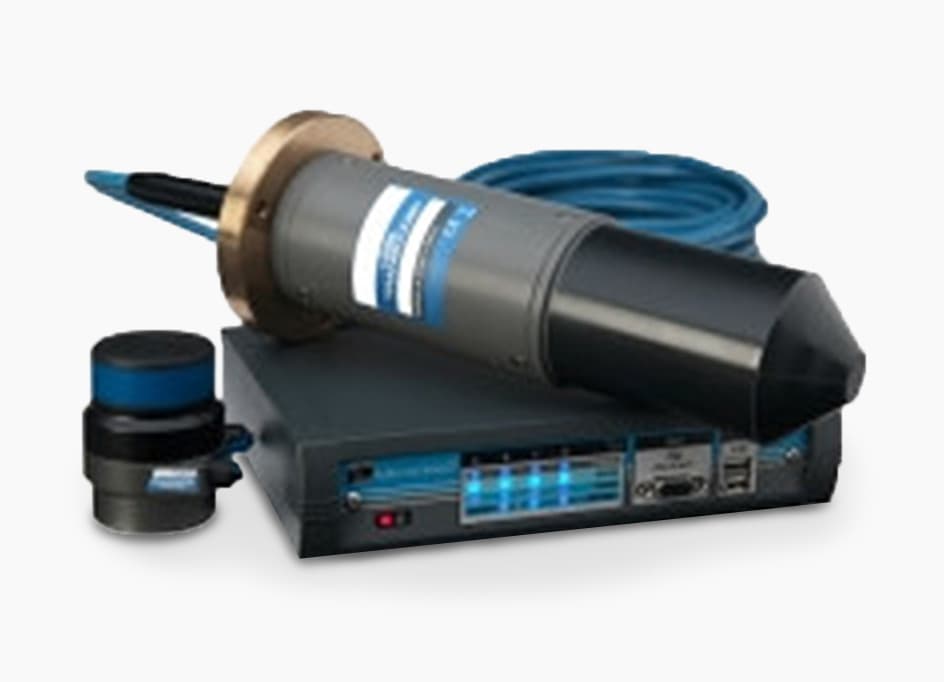

System Contents:

  • Subsea MicronNav modem unit
  • Surface USBL dunking transducer unit with integral Magnetic Compass and Pitch / Roll sensors
  • Surface MicronNav 100 interface module
  • Operating software for user-supplied laptop computer
  • Mounting ballast for Deep Trekker ROV and Installation
  • Manual

The TriTech UBSL Positioning System can also integrate with other TriTech Sonars including the integrated TriTech micron sonar for the Deep Trekker DTG2 ROV.

Applications:

  • ROV Navigation and Piloting
  • Police Evidence Retrieval
  • Search & Rescue
  • Oil & Gas
  • Haul and Infrastructure Inspections

Customize your Deep Trekker ROV Package for your specific needs with these available add-ons. Add-ons must be selected at time of purchase, or by sending back your unit to the Deep Trekker Service Center.

Share this
Share on FacebookShare on Google+Tweet about this on TwitterShare on LinkedIn

Additional information

Horizontal Range

500m

Depth Range

150m

Frequency

20-28 kHz

Transducer Range

180 degree coverage

Bearing Accuracy

±3° (determined by USBL integrated heading sensor)

Range Accuracy

±0.2m

Position Update Rate

0.5 – 10s
