VAC MAX RESERVOIR CLEANING ROBOT
$39,999 USD
Built for cleaning sediment and sludge from the bottoms of reservoirs and tanks, the VAC MAX is an easier, safer and more cost effective alternative to draining assets or utilizing divers for cleaning. The big brother of the VAC Utility Crawler, the VAC MAX covers more ground and moves twice as fast to tackle the biggest of jobs. Perfect for reservoirs, the VAC MAX readily handles sediment and mud.
Error adding item to quote
Added to quote
36" vacuum head
Raise and lower vacuum head 40 degrees
Pan/tilt/zoom elevated camera
Tilt vacuum head 40 degrees
650 Lumen LED floodlights
Full HD Camera
The VAC MAX can take on the toughest jobs with ease.
With a wider tail and updated wheels, the VAC MAX can take on the toughest jobs with ease. Enhanced traction and higher speed paired with the ability to cover more ground make the VAC ideal for substantial cleaning jobs including reservoirs and large tanks.
Like the original VAC, the VAC MAX is built with anodized aluminum and utilizes our innovative magnetically coupled drive assemblies at the wheels, eliminating the need for ongoing maintenance.
Users are also able to upgrade their current VAC into the VAC MAX in a 30 minute conversion time.

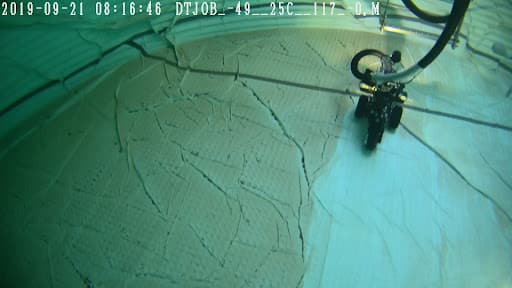

Clean tanks remotely and safely
Use the VAC MAX as an easier, safer and more cost effective alternative to divers operating hoses and pumps to clean a tank.
Robust design
The VAC MAX is built with anodized aluminum and utilizes our innovative magnetically coupled drive assemblies at the wheels, this eliminates the need for ongoing maintenance and is proven to be reliable long term.
Battery Powered + Hybrid
The utility crawler is battery powered with the ability to trickle charge during operation, allowing you to operate in the most remote locations and switch to a topside power option when needed.
Easy to Sanitize
Avoid the risk of contaminants that are introduced when using divers or other foreign materials. Customers easily apply or dunk the VAC crawler into a 200ppm solution before deploying.
VAC MAX Utility Crawler
36" Wide VAC Head, Single Hose Connector
1080p Full HD Body Camera
75 M tether

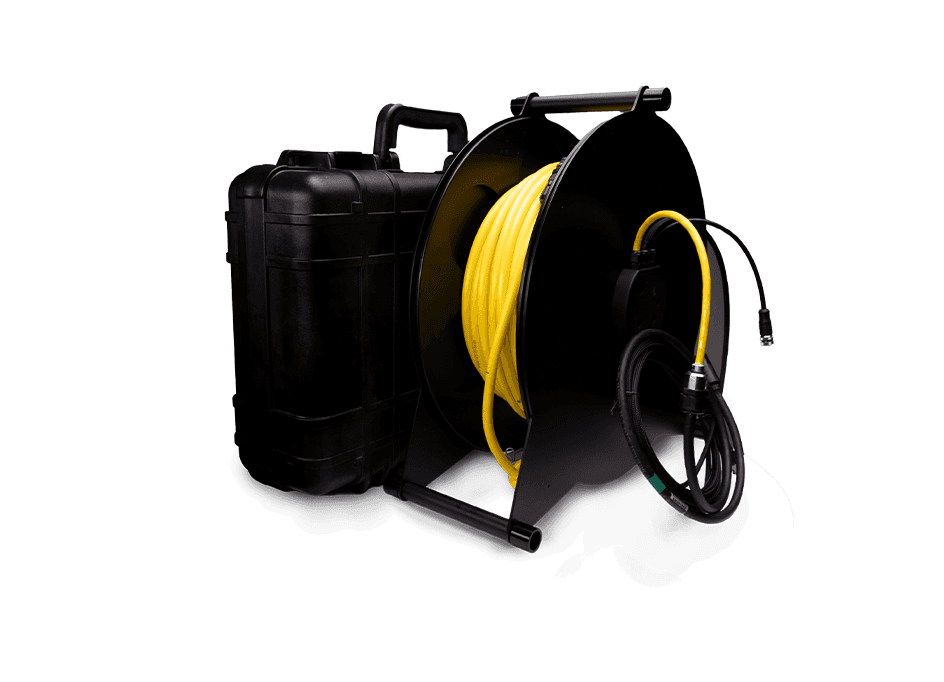

Heavy duty tether reel with bearings and electrical slip ring for easy tether management
Wheeled Pelican Case
Handheld Controller
Chargers
Elevated Pan & Tilt Full HD Camera with LED Floodlights
Utility Crawler - Specs
| Weight | 16.6kg (36.59 lb) |
|---|---|
| Warranty | 1 year – Parts and Labor (extended 2-3 yrs optional) |
| Materials | Stainless Steel Aluminum |
| Main Camera | 1080p, 1 / 2.5, 8MP, 30 FPS, 2.7mm Lens |
| Main LED Lights | High Efficiency LED Flood, 1000 lumens |
| Submersible Depth Rating | 50m (164 ft) |
| Max payload (sensors/tools) | ~20 lb (may be higher depending on application and conditions) |
| Elevating Arm Aux Camera (Optional) | 360° Manual Positioning, Fixed Forward, 1080p, 1 / 2.5, 8MP, 30 FPS, 2.7mm Lens |
Utility Crawler - Wheels Specs
| Turn Radius | 0 m |
|---|---|
| Wheel Options | Patented Magnetic, Rubber |
| Variable Speed | 12 m / min |
Utility Crawler - Dimensions Specs
| Width | 406 mm (13") |
|---|---|
| Height | 228 mm (9") |
| Length | 710 mm (27.95") |
Utility Crawler - Tether Specs
| Tether Length | 50 m - 400 m (164 ft - 1312 ft) |
|---|---|
| Tether Diameter | 6.2 mm (0.24") |
| Tether Construction | Polyurethane Outer Jacket with Embedded Light Weight Synthetic Fibers |
| Max Working Strength | 150 kg (300 lbs) |
Utility Crawler - Tether Real
| Construction | Industrial tough; IP68 |
|---|---|
| Standard Length | 75m (246 ft) |
| Optional Capacity | Up to 400m (1,312 ft) |
Utility Crawler - Drive System
| Power | Planetary Gear Motor (2 pieces) |
|---|---|
| Gear Train | High Strength Oversized Gears |
| Final Drives | Magnetically Coupled |
| Wheel Control | Steerable, Cruise Control, Infinitely Variable (Forward and Reverse) |
The VAC MAX can take on the toughest jobs with ease.
With a wider tail and updated wheels, the VAC MAX can take on the toughest jobs with ease. Enhanced traction and higher speed paired with the ability to cover more ground make the VAC ideal for substantial cleaning jobs including reservoirs and large tanks.
Like the original VAC, the VAC MAX is built with anodized aluminum and utilizes our innovative magnetically coupled drive assemblies at the wheels, eliminating the need for ongoing maintenance.
Users are also able to upgrade their current VAC into the VAC MAX in a 30 minute conversion time.
Clean tanks remotely and safely
Use the VAC MAX as an easier, safer and more cost effective alternative to divers operating hoses and pumps to clean a tank.
Robust design
The VAC MAX is built with anodized aluminum and utilizes our innovative magnetically coupled drive assemblies at the wheels, this eliminates the need for ongoing maintenance and is proven to be reliable long term.
Battery Powered + Hybrid
The utility crawler is battery powered with the ability to trickle charge during operation, allowing you to operate in the most remote locations and switch to a topside power option when needed.
Easy to Sanitize
Avoid the risk of contaminants that are introduced when using divers or other foreign materials. Customers easily apply or dunk the VAC crawler into a 200ppm solution before deploying.
VAC MAX Utility Crawler
36" Wide VAC Head, Single Hose Connector
1080p Full HD Body Camera
75 M tether
Heavy duty tether reel with bearings and electrical slip ring for easy tether management
Wheeled Pelican Case
Handheld Controller
Chargers
Elevated Pan & Tilt Full HD Camera with LED Floodlights
Utility Crawler - Specs
| Weight | 16.6kg (36.59 lb) |
|---|---|
| Warranty | 1 year – Parts and Labor (extended 2-3 yrs optional) |
| Materials | Stainless Steel Aluminum |
| Main Camera | 1080p, 1 / 2.5, 8MP, 30 FPS, 2.7mm Lens |
| Main LED Lights | High Efficiency LED Flood, 1000 lumens |
| Submersible Depth Rating | 50m (164 ft) |
| Max payload (sensors/tools) | ~20 lb (may be higher depending on application and conditions) |
| Elevating Arm Aux Camera (Optional) | 360° Manual Positioning, Fixed Forward, 1080p, 1 / 2.5, 8MP, 30 FPS, 2.7mm Lens |
Utility Crawler - Wheels Specs
| Turn Radius | 0 m |
|---|---|
| Wheel Options | Patented Magnetic, Rubber |
| Variable Speed | 12 m / min |
Utility Crawler - Dimensions Specs
| Width | 406 mm (13") |
|---|---|
| Height | 228 mm (9") |
| Length | 710 mm (27.95") |
Utility Crawler - Tether Specs
| Tether Length | 50 m - 400 m (164 ft - 1312 ft) |
|---|---|
| Tether Diameter | 6.2 mm (0.24") |
| Tether Construction | Polyurethane Outer Jacket with Embedded Light Weight Synthetic Fibers |
| Max Working Strength | 150 kg (300 lbs) |
Utility Crawler - Tether Real
| Construction | Industrial tough; IP68 |
|---|---|
| Standard Length | 75m (246 ft) |
| Optional Capacity | Up to 400m (1,312 ft) |
Utility Crawler - Drive System
| Power | Planetary Gear Motor (2 pieces) |
|---|---|
| Gear Train | High Strength Oversized Gears |
| Final Drives | Magnetically Coupled |
| Wheel Control | Steerable, Cruise Control, Infinitely Variable (Forward and Reverse) |
