VAC Tank Cleaning Robot
The easiest, safest and most cost effective way to clean water storage tanks
VAC TANK CLEANING ROBOT PACKAGES
VAC
Want to clean sediment from the bottom of a water storage tank without hiring divers or draining it? The VAC Package gives you an easy to operate option for proactive cleaning of potable tanks and towers.

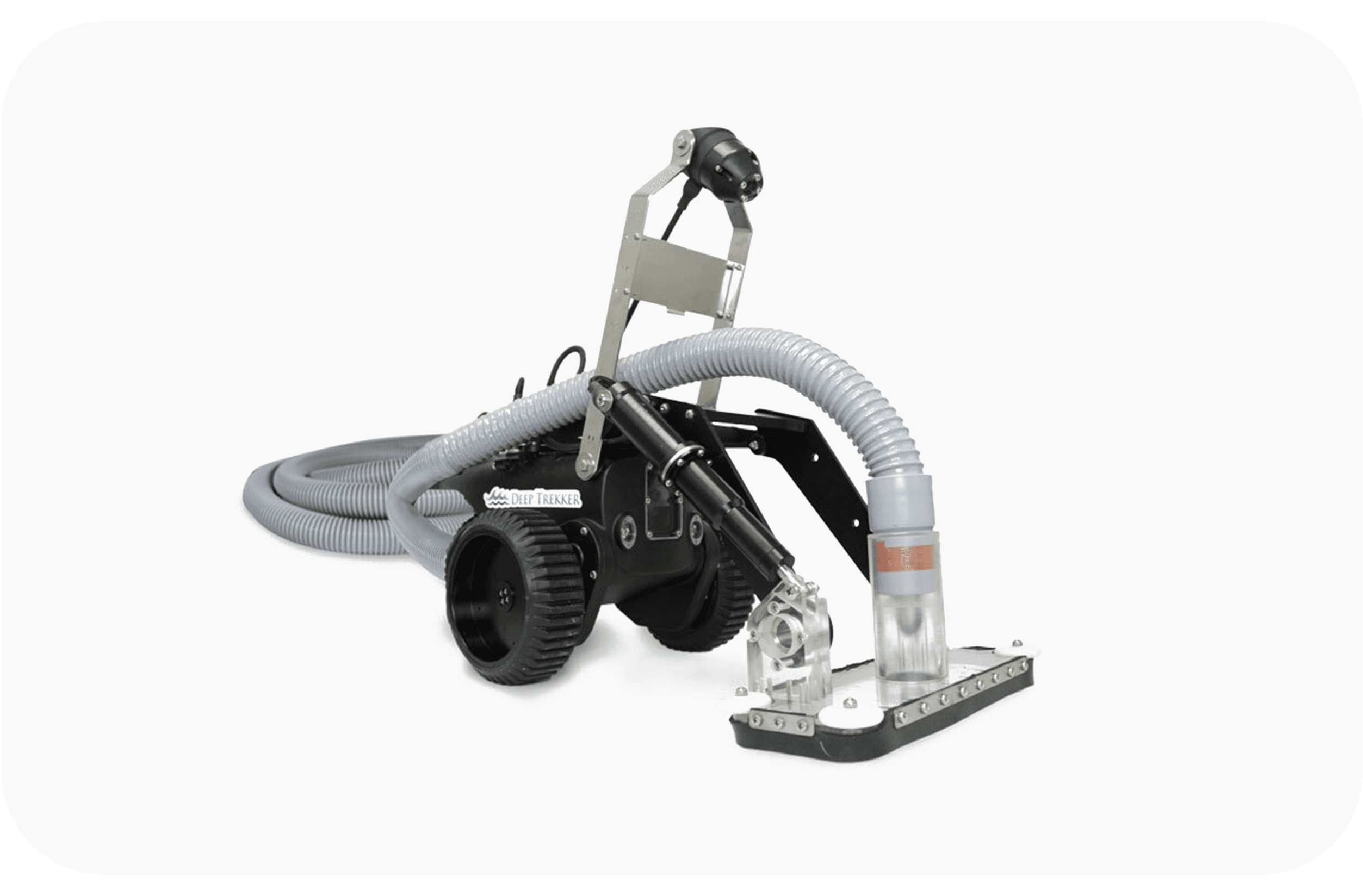

VAC MAX
Built for cleaning sediment and sludge from the bottoms of reservoirs and tanks, the VAC MAX is an easier, safer and more cost-effective alternative to draining assets or utilizing divers for cleaning. The big brother of the VAC crawler, the MAX covers more ground and moves twice as fast and can handle twice as much sediment depth to tackle the biggest of jobs.
VAC
Want to clean sediment from the bottom of a water storage tank without hiring divers or draining it? The VAC Package gives you an easy to operate option for proactive cleaning of potable tanks and towers.
Intuitive controls and setup
Connect a hose and pump from outside the tank to the portable utility crawler and start cleaning your tank.
Maneuverable even in the tight spaces
Three wheeled design enables a zero turn radius, tilting and lifting actuator arm allows you to position your vacuum head in the optimal location to clean near corners, walls, pipes, etc.
Compact and portable vacuum robot
Built to be transported in two cases, our VAC robots can be immediately launched in any location. The perfect robotic system for remote tank cleaning. Customize your unit with specific attachments for your project at hand.
At a glance
Battery operated
Low maintenance
Fully submersible
360° turn radius
Full HD Cameras
Extremely durable
Simple to use controls
Various vacuum attachments
“This is amazing! Instead of draining tanks or risking diver safety, we inspect and vacuum out the sediment with the VAC crawler. There’s a lot less setup time and it is 40% of the cost of divers.”

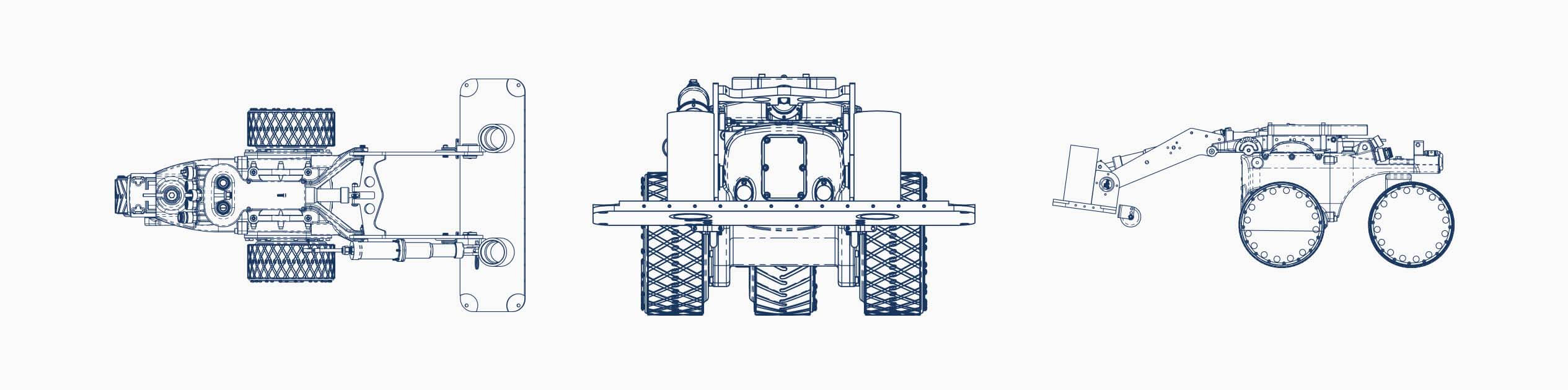

VAC ROBOTIC CRAWLER SPECIFICATIONS
| VAC Specifications | |
|---|---|
| Length : | 710 mm (27.95”) |
| Width : | 406 mm (13”) |
| Height : | 228 mm (9”) |
| Weight : | 15 kg (34 lb) |
| Materials : | Stainless Steel Aluminum High Strength Acrylic |
| Submersible Depth Rating : | 50 m (164 ft) |
| Wheels : | Rubber 2WD |
| Turn Radius : | 0 mm (0") |
| Speed : | 12 m / min |
| Operating Temp : | -5C to 40C (23F – 104F) |
| Warranty : | 1 Year – Parts and Labor (optional 2-3 yrs) |
| Electrical System | |
|---|---|
| System : | 19.2 VDC (Lithium Batteries) |
| Sensors : | Incline, Roll, Leak, Camera Pan/Tilt |
| Lighting : | 900 Lumens |
| Camera : | 1080p, 1 / 2.5, 8MP, 30 FPS, 2.7mm Lens |
| Optional 4K Upgrade | |
| Drive System | |
|---|---|
| Power : | Planetary Gear Motor (2 pieces) |
| Wheel Control : | Steerable, Cruise Control, Infinitely Variable (Forward & Reverse) |
| Gear Train : | High Strength Oversized Gears |
| Final Drives : | Magnetically Coupled |
| Tether | |
|---|---|
| Tether Diameter : | 6.2 mm (0.24") |
| Tether Length : | 50 m - 400 m (164 ft - 1,312 ft) |
| Tether Construction : | Polyurethane Outer Jacket with Embedded Synthetic Fibers |
| Minimum Breaking Strength : | 150 kg (300 lbs) |
| Tether Reel | |
|---|---|
| Construction : | Industrial tough; IP68 |
| Standard Tether Length : | 75 m (264 ft) |
| Optional Capacity : | Up to 400 m (1,312) |
Deep Trekker reserves the right to amend these specifications at any time without notice.
Custom build your own package
VAC Utility Crawler Add-Ons
Deep Trekker engineered the Utility Crawler robots to perform specific tasks safely and efficiently. With their live HD video stream to the surface and customizable attachments, this platform is capable of cleaning and inspecting challenging areas with ease.
