ROV Submarino REVOLUTION
$29,999 USD
ROV Submarino REVOLUTION
$29,999 USD
Clasificación de profundidad para 305 metros
Quick-swap batteries
Revolving camera head
Cámara Ultra HD para poca luz
Movilidad extrema. Control de estabilización
Amplias integraciones del sensor

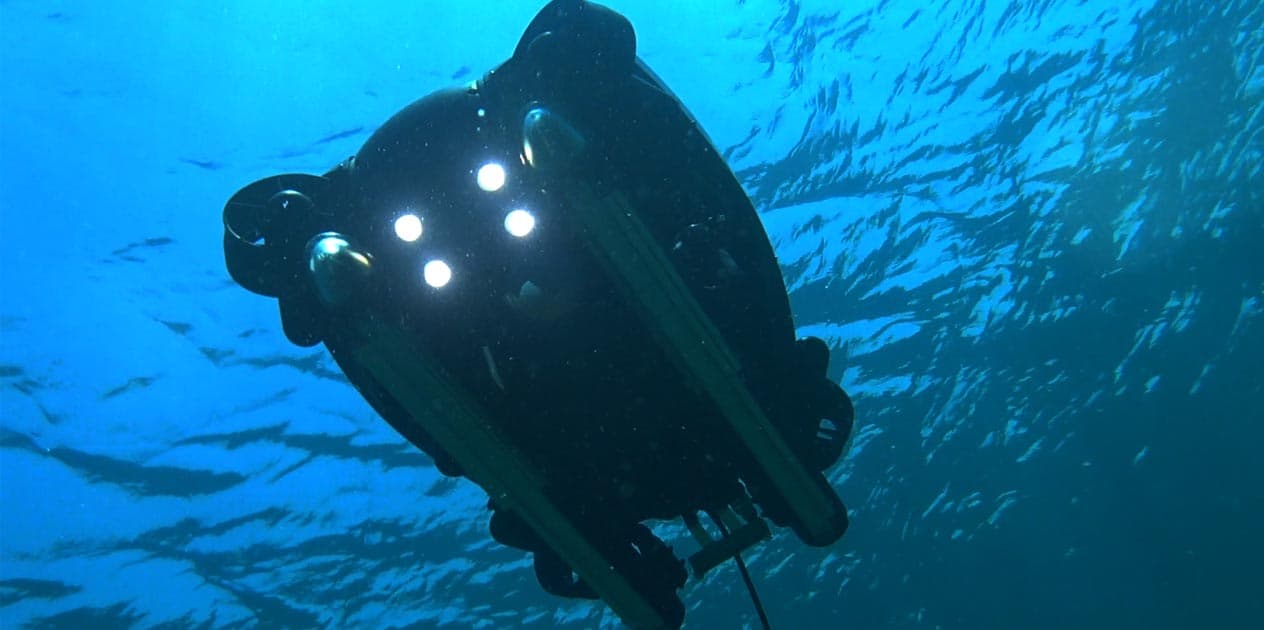

Junto con la fuerza de conducción de BRIDGE, el REVOLUTION ofrece estabilidad avanzada en entornos submarinos. Con una estación automatizada, la cámara, el sonar y el brazo manipulador, aún tiene la capacidad de girar 260 grados para estar al tanto de la situación.
Un diseño mecánico completamente nuevo que se diferencia de su antecesor. El REVOLUTION de Deep Trekker es un sistema de expediciones más potente y más rápido. Con la libertad de moverse, el REVOLUTION tiene maniobrabilidad óptima, incluso en aguas de ambientes exigentes. Tiene una clasificación de profundidad para 305 metros (1000 pies) con hélices orientables robustas para moverse de forma lateral y trabajar en las corrientes.
Revolutionary revolving camera head

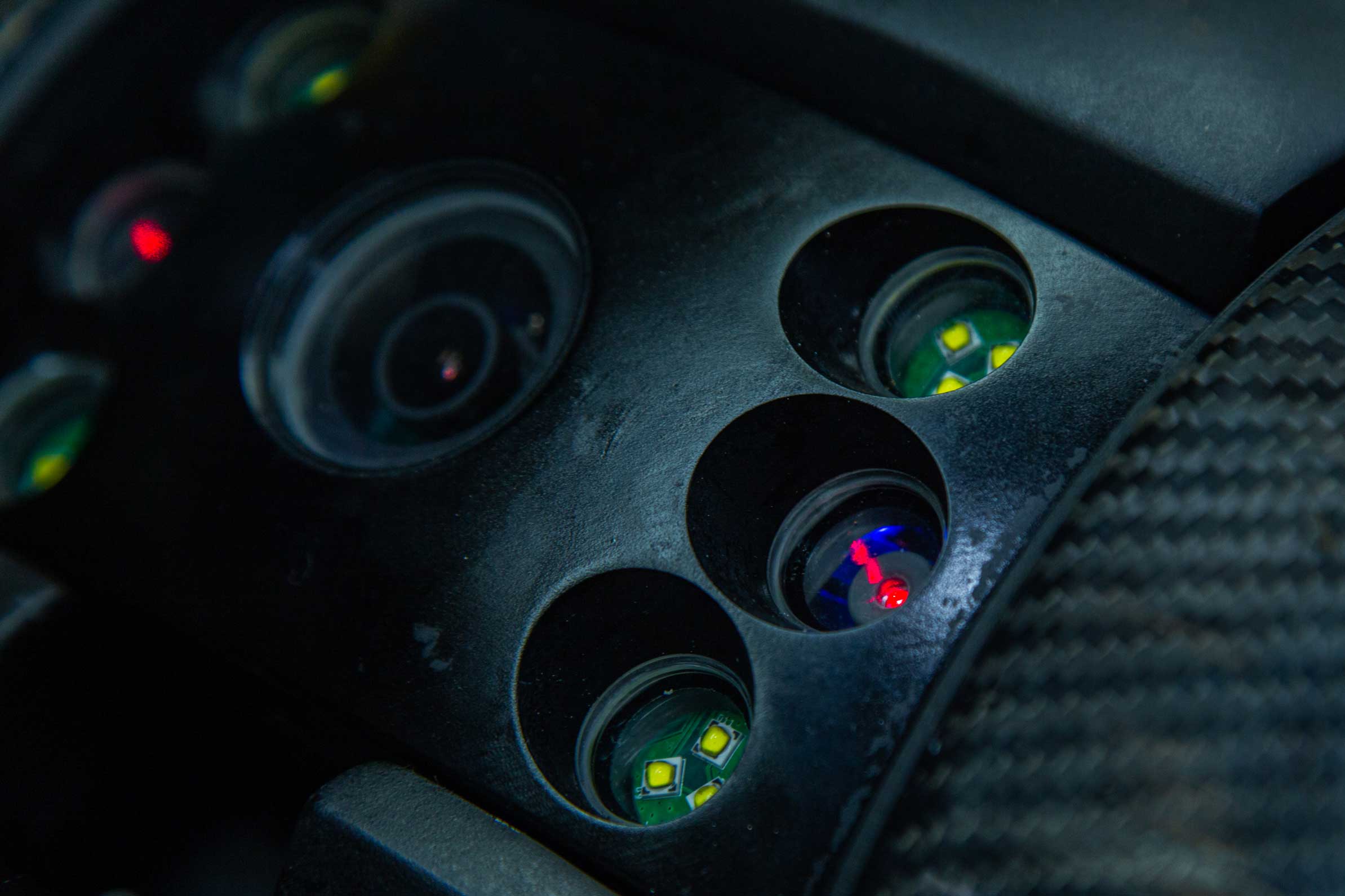

The defining feature is the 260-degree revolving head at the front of the vehicle. In the center of this head is the ultra high definition camera that you see the view from on your controller, as well as powerful LED floodlights and a laser scaler.
Adjust the angle of your camera, lights, laser scaler, imaging sonar and grabber to ensure optimal position for your application, such as sweeping an area with the imaging sonar in a search mission or looking above at the hull of a ship or to locate targets on the seafloor.
Stable six-thruster control

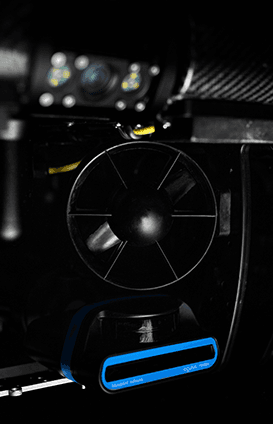

The ROV is propelled by six powerful thrusters, two of which are vertically mounted for precise vertical movements and depth holding, four of the thrusters are mounted horizontally and in a vectored configuration to allow for lateral movements. This configuration of thrusters is great for holding in heavier currents and for stable control when making fine adjustments while performing an inspection or survey.
Operation longevity
The REVOLUTION is powered by two Lithium Ion battery tubes on the bottom of the ROV. These batteries last for up to 8 hours and only take 3 hours to recharge. Included in the package is a spare set of batteries, these battery tubes or skis can be interchanged very quickly to keep your operations up and running. At the front of the skis are additional LED floodlights for even better illumination for your video.
BRIDGE seamless sensor integrations

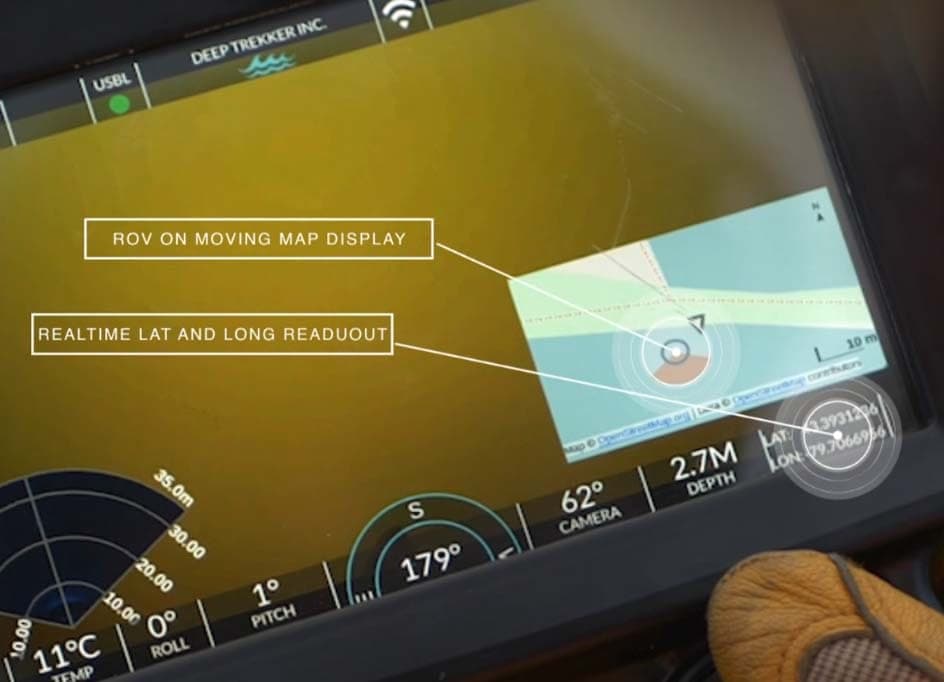

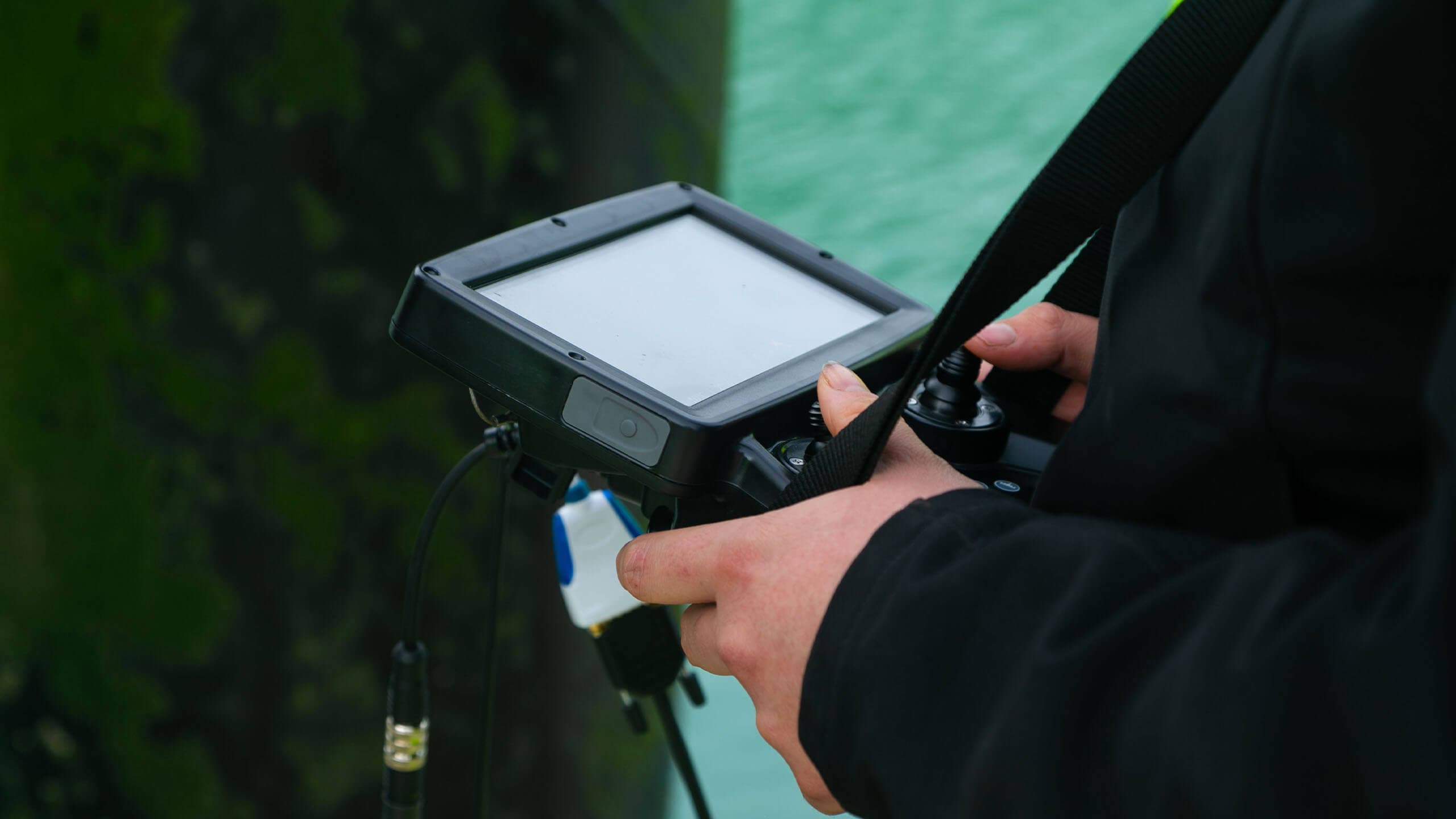

Our ROVs are controlled by our BRIDGE software, which enables you to see and record data from many different sensors all from a handheld controller. When you add positional sensors such as the USBL, you can see your position on screen via a Google map and record your position as it changes over time along with the video and your other sensor data. Imaging sonars are also integrated directly on the handheld, allowing you to see and record sonar data side by side with your position and video footage.
Durable construction

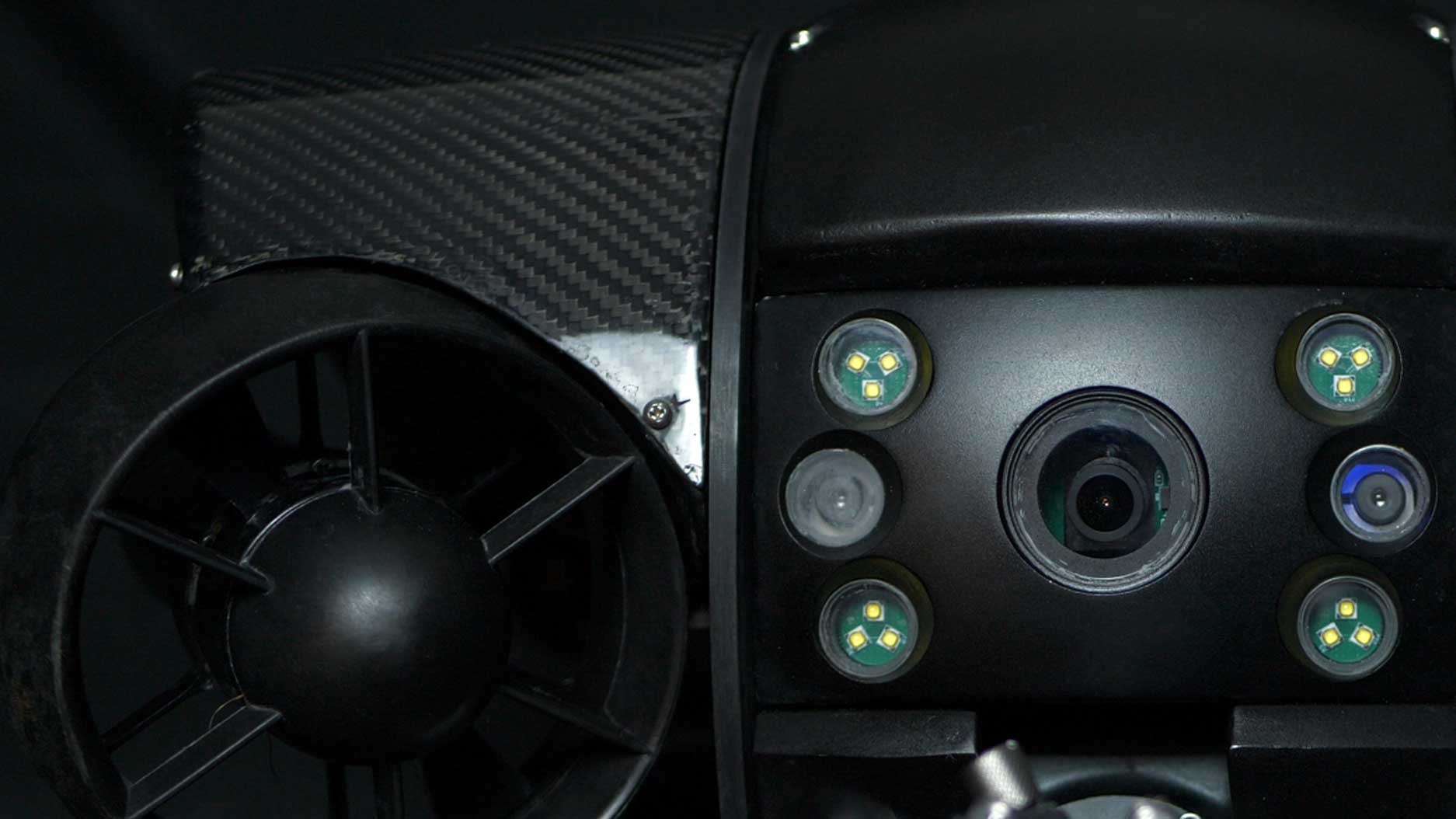

The carbon fibre shell, anodized aluminum and stainless steel body and sapphire lens cover make the ROV a very rugged and durable machine.
Magnetic coupling

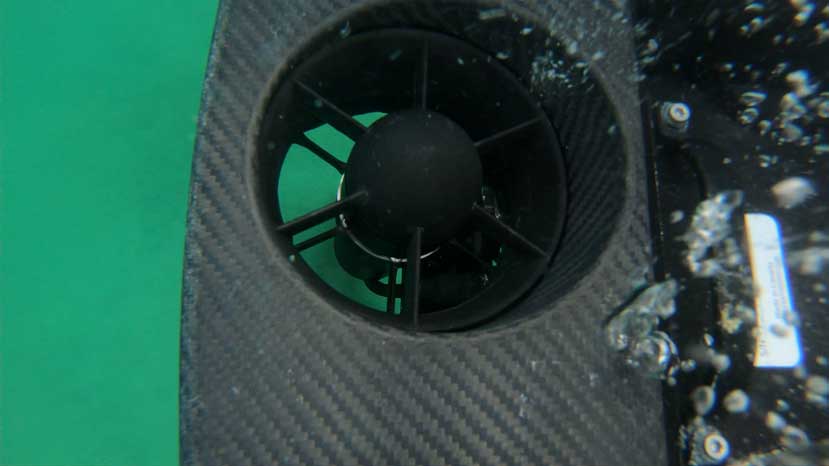

The thrusters utilize an innovative design called magnetic coupling, the propeller assembly and drive motor are connected together using magnets, meaning that the thrusters are very durable, they do not wear down over time and they do not require ongoing maintenance as other thrusters often do require oiling, greasing or regular replacement.
Direct sonar integration

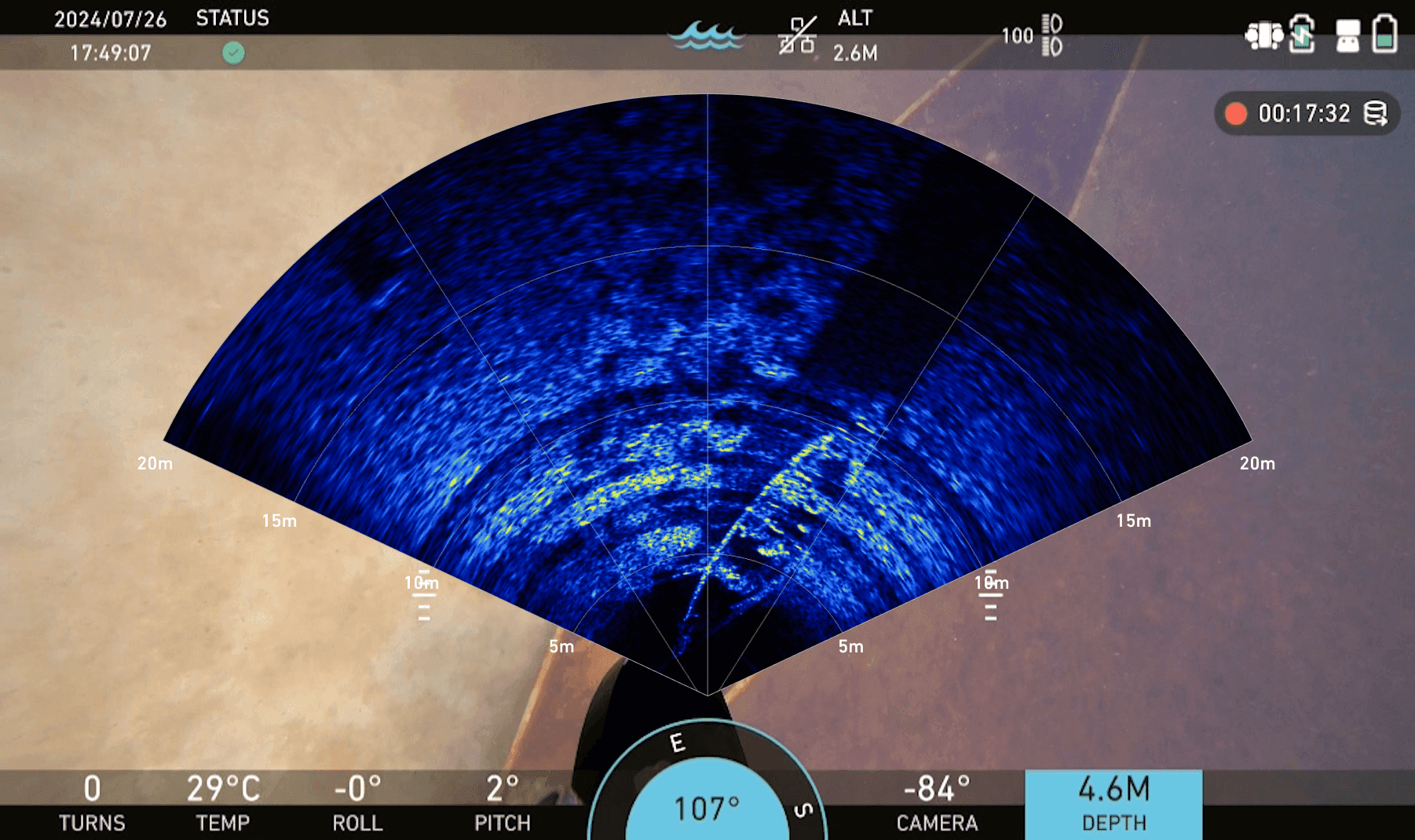

Above the camera head is an optional mount for a multibeam imaging sonar. Use the sonar to get a visual through murky water or over longer distances, monitor your sonar footage live and record it alongside your video all on your handheld controller, no extra laptops or monitors required.
Simple field-change tools
Below the camera is a two function grabber, with interchangeable claws for sampling, measuring, recoveries or tool manipulation.
ROV REVOLUTION con 6 hélices
Cámara HD con 260 grados de campo de visión y luz LED de alta potencia
300 metros (1000 pies) de cable en carrete (6 mm de diámetro)

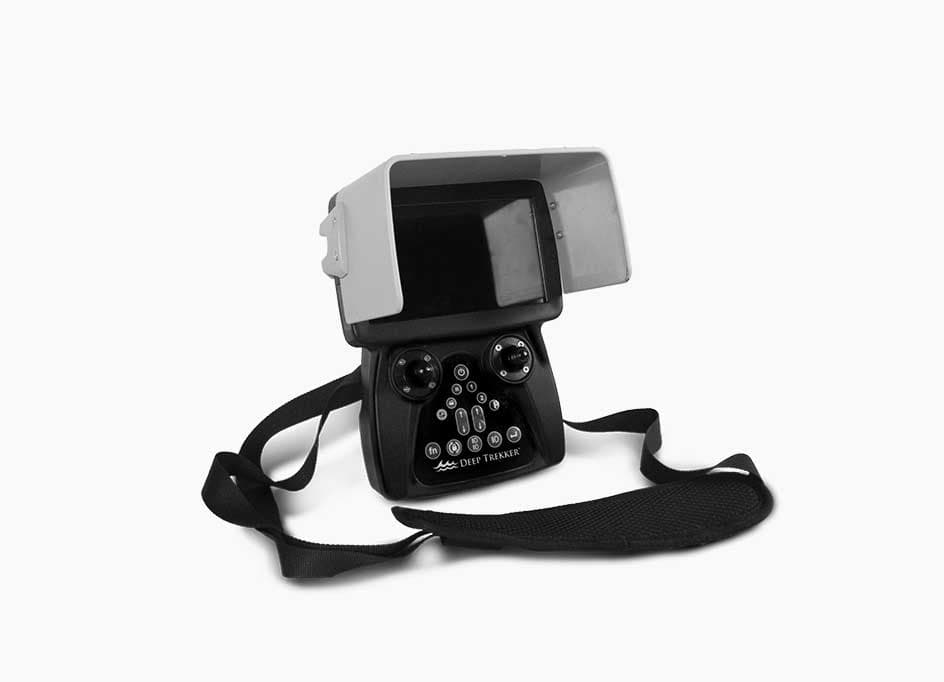

Controlador de pantalla súperluminosa integrado con herramienta de diagnóstico incorporada
Brazo de captura de 2 funciones
Paquete de sensores inteligentes: temperatura de agua, niveles de batería, profundidad automática y rumbo automático
4 luces LED auxiliares fijas adicionales
Estuche Pelican con ruedas
Escala láser
Baterías de repuesto
Micrófono
Chargers and Ballast Tool Kit
REVOLUTION ROV Specs
Speed | 3 nudos |
---|---|
Warranty | 1 año: piezas y mano de obra |
Depth Rating | 305 m |
Body Material | Aluminio fundido anodizado |
System Voltage | 22,2 V CC |
Window Material | Zafiro y acrílico |
Battery Run Time | 3 a 6 horas |
Operating Temperature | -10 °C a 50 °C |
¿Puedo subir y bajar el ROV por su cable?
El cable tiene una resistencia a roturas de 68 kilos; por lo tanto, no hay problema en subir el ROV a través del cable. Puede subir y bajar el ROV por el cable y recuperar el objeto con el brazo de captura tirando hacia arriba del cable.
¿Puedo conectar el controlador a un monitor más grande mientras realizo una inmersión?
Sí. Hay un cable RCA en la parte posterior para la salida de video. Puede conectarlo con cualquier grabadora o pantalla de TV.
¿Puedo agregarle mis propios accesorios, como una cámara que flote de manera neutral?
Sí, siempre que el accesorio esté dentro de los 40 gramos de flotabilidad neutral no afectará la capacidad del ROV de maniobrar a través de las aguas.
