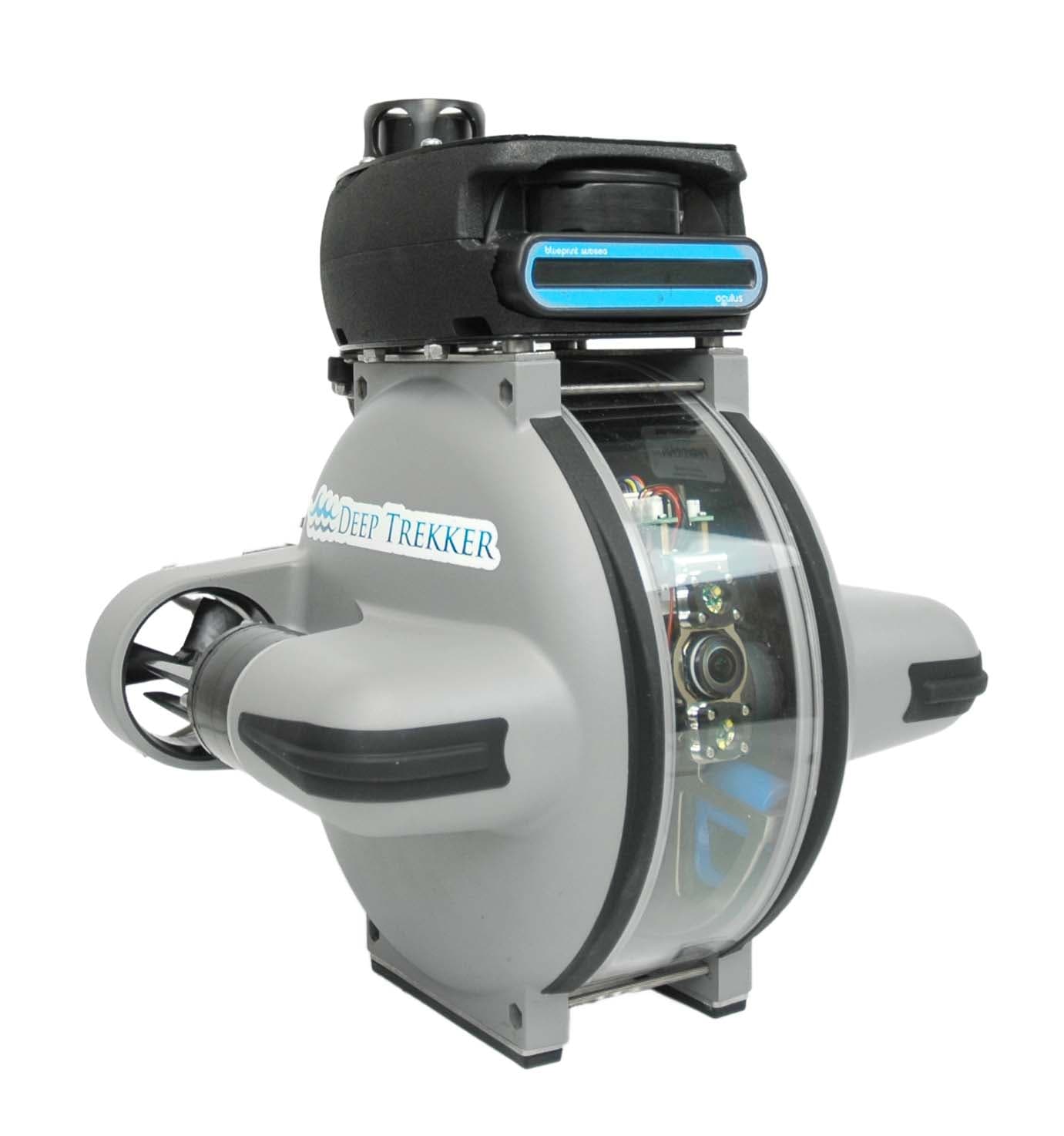

Accesorio de sonar de generación de imágenes multihaz de proyección Oculus M750D para las orugas robóticas y vehículos de operación remota de Deep Trekker.

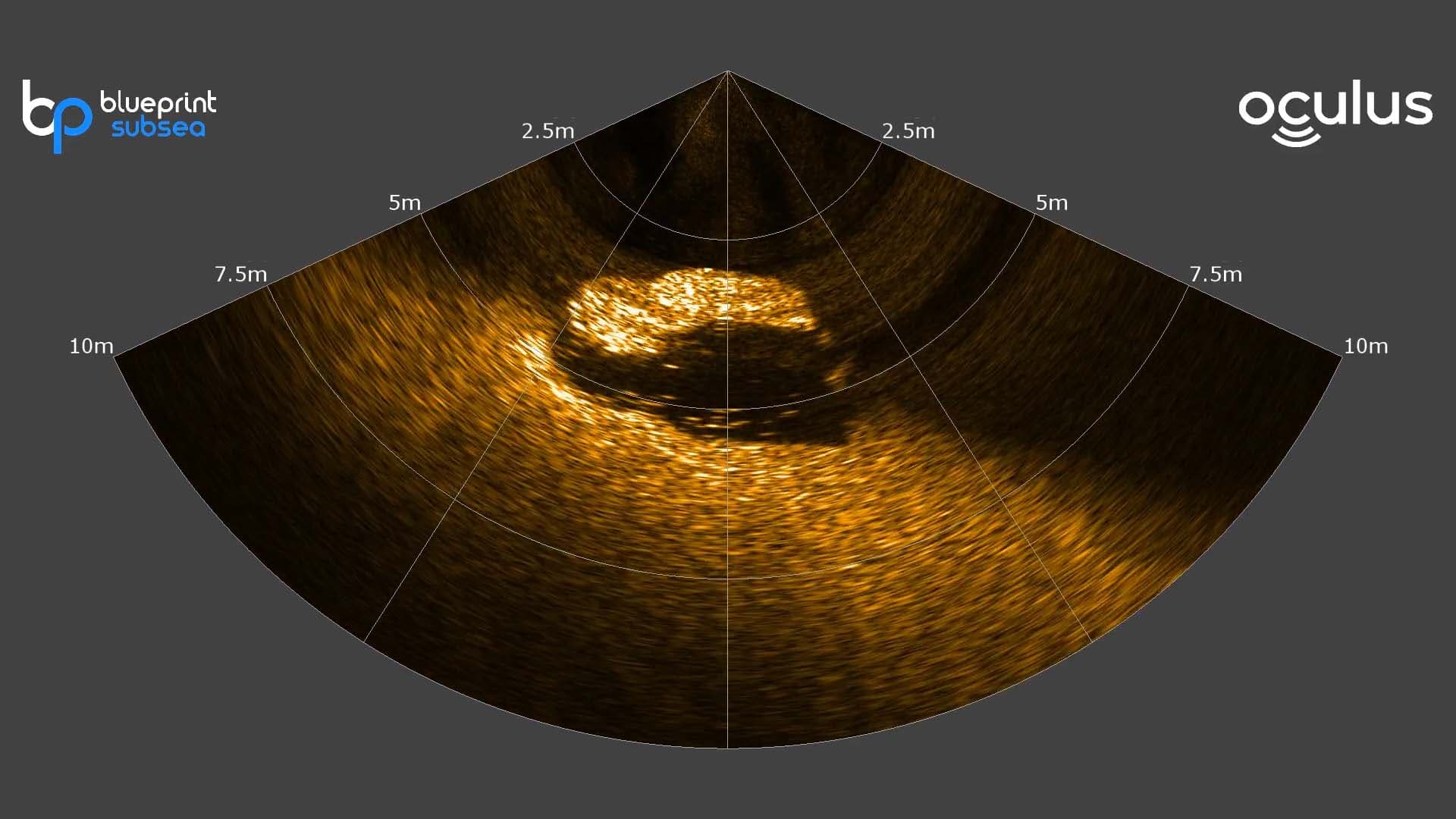

Sonar de generación de imágenes bidimensionales de uso general para lograr ver en aguas oscuras o turbias. El M750 es un sonar multihaz de 750kHz o 1,2 MHz. El modo de frecuencia doble ofrece incluso más detalles en una ventana más pequeña. Tiene mayor capacidad de rango que cualquier otro sonar de generación de imágenes (0,1 m a 120 m) pero ofrece imágenes de menor calidad en comparación con el M1200 y se adapta mejor a la navegación, a las inspecciones y a las misiones de búsqueda y rescate.

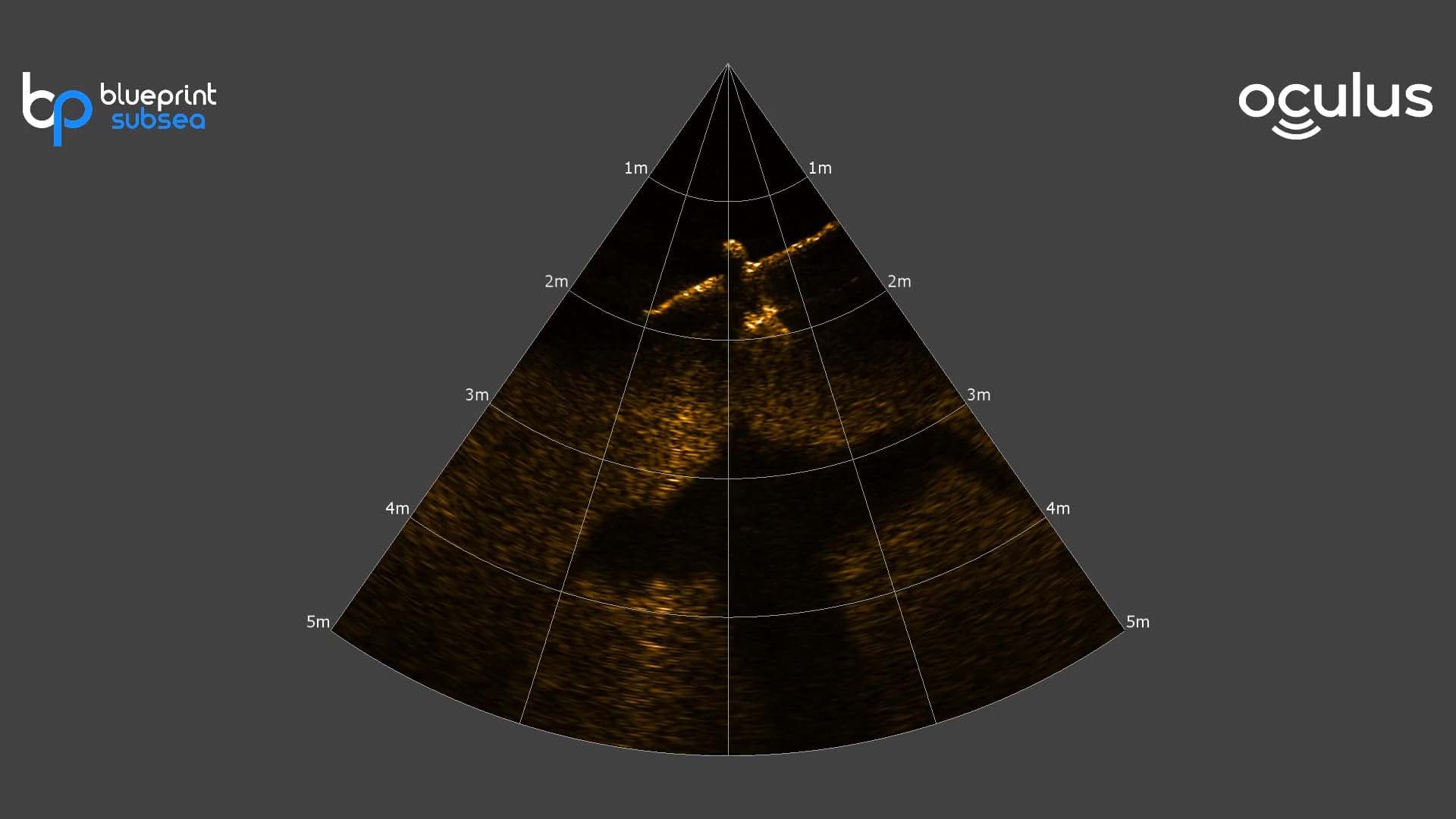

Sonar for search and recovery

In Search and Recovery operations, First responders looking for evidence or drowning victims typically sweep an area using side scan sonar, identify potential targets and then investigate those targets to see if it is in fact the victim.

Low-visibility operations

Cameras and diver’s eyes often are unable to effectively search due to poor visibility underwater. An imaging sonar is the best tool to then reidentify the target, since oftentimes side scan data does not produce an exact location (so navigating back to the potential target can be difficult). Once the target is reidentified, the sonar can be used to continue to track the target as you move closer, and when you get close enough, it can even be used to perform the visual verification.

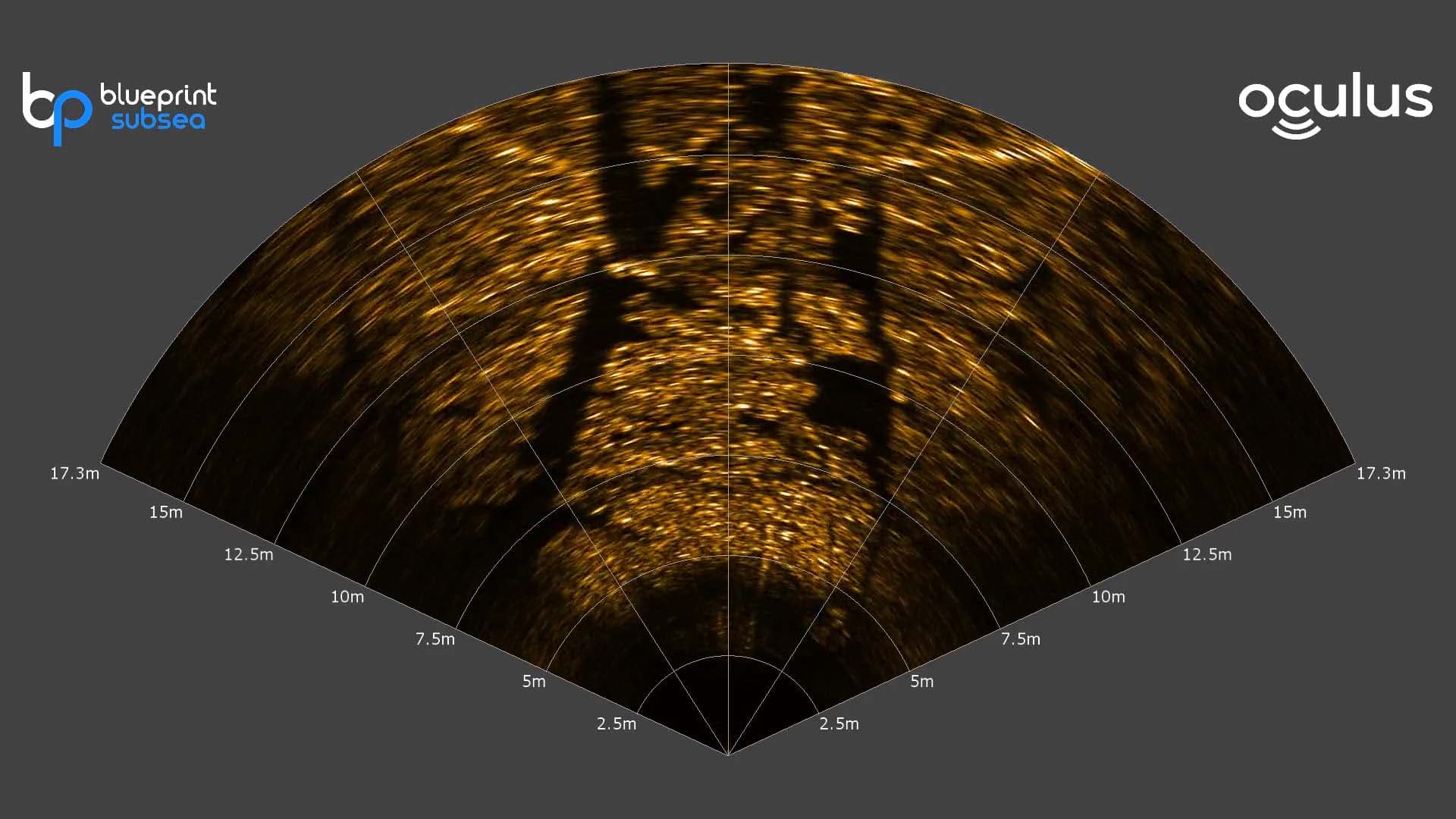

Sonar for hull inspection

In inspection operations, particularly in murky water applications, it can be difficult to use just a camera to get an understanding of the condition of a structure.

For example, when inspecting the hull of a ship, you want to see if there are any major defects or corrosion, damage to the coating, zincs, anodes, propeller, check the coating condition, check if the hull needs to be cleaned.

M750D Multibeam Sonar Specs

Length125mm (4.9 inch)
Width122mm (4.8 inch)
Height62mm (2.4 inch)
Weight in air980g (2.1lbs)
Weight in water360g (0.79lbs)
Depth Rating300m
ConstructionAnodised Aluminium (Titanium available on request)
Operating & Storage Temperature-5°C to +35°C (23°F 95°F)

M750D Multibeam Acoustic Specs

Frequency750kHz (LF) / 1.2MHz (HF)
Range (max)120m (LF) / 40m (HF)
Range (min)0.1m
Range Resolution4mm (LF) / 2.5mm (HF)
Update Rate (max)40Hz
Horizontal Aperture130° (LF) / 70° (HF)
Vertical Aperture20° (LF) / 12° (HF)
Number of Beams512
Angular Resolution1° (LF) / 0.6° (HF)
Beam Seperation0.25° (LF) / 0.16° (HF)
